M-110.C86311 Linear Stage System

Compact Linear Stage, DC Gear Motor, 5 mm Travel Range, with Controller

  • Very compact due to folded drive
  • Closed-loop DC motor
  • Noncontact reference and limit switches
  • XY setups can be mounted directly
  • Larger quantities available quickly
M-110.C86311 Linear Stage System
Product Description Specifications Downloads Quote / Order

Compact linear stage

Linear stage with compact size due to folded drive with belt drive. Clear aperture with 10 mm Ø. XY setups can be mounted directly without adapter plate.

Drive

  • Closed-loop DC gear motor
  • Backlash-compensated leadscrew

Position measuring

  • Rotary encoder on the motor shaft
  • Noncontact Hall effect reference and limit switches

Application fields

Precision microassembly. Research. Laser marking. Automation. Optical alignment.

Specifications

Datasheet

Datasheet M-110.C86311

Version / Date
2020-08-04
pdf - 845 KB
Version / Date
2020-08-04
pdf - 848 KB
Version / Date
2021-01-14
pdf - 517 KB

Downloads

Datasheet

Datasheet

Datasheet M-110.C86311

Version / Date
2020-08-04
pdf - 845 KB
Version / Date
2020-08-04
pdf - 848 KB
Version / Date
2021-01-14
pdf - 517 KB

Documentation

Documentation

User Manual M110T0034

M-110.C86311 Compact precision linear stage system

Version / Date
2020-10-28
pdf - 853 KB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

M-110.C86311

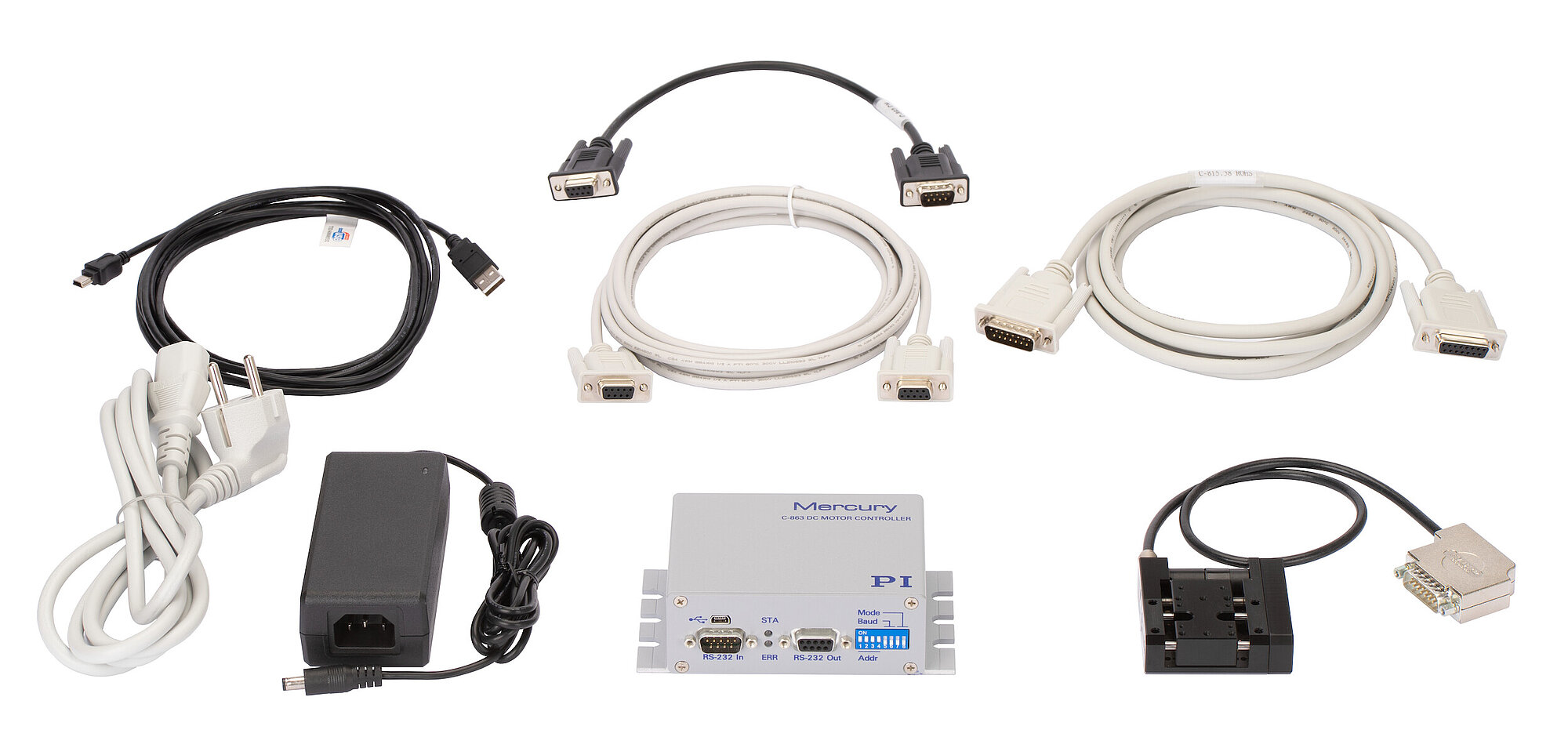

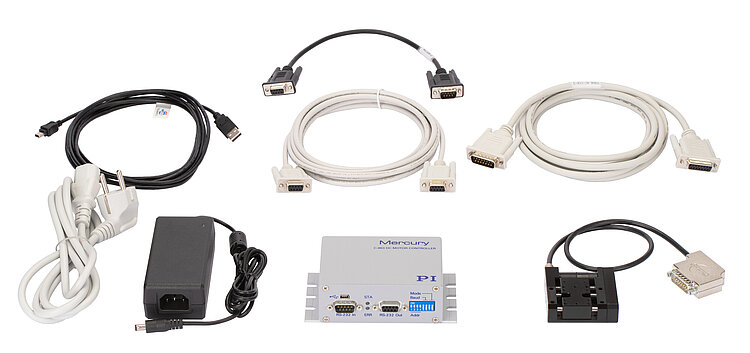

System of compact M-110 linear stage, 5 mm travel range, 30 N load capacity, DC gear motor, rotary encoder, leadscrew, and C-863.11 Mercury DC motor controller, incl. connection cable, interface cables, and power adapter with power cord
