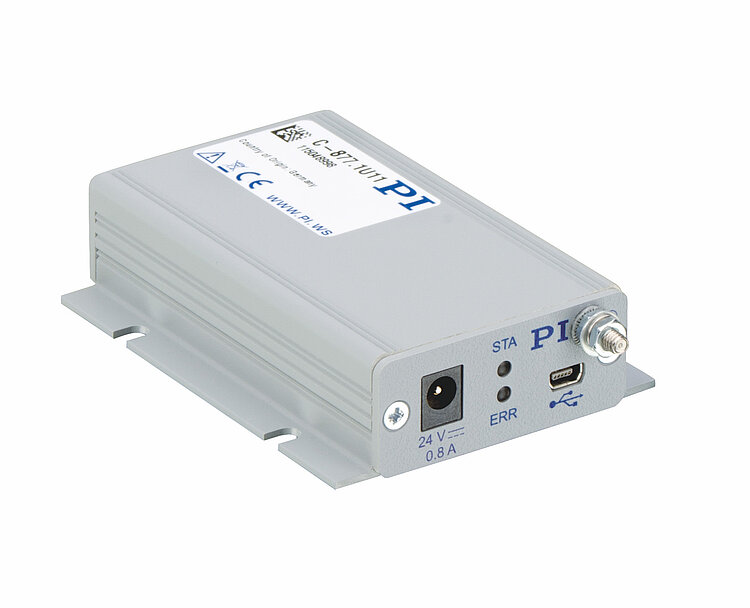

C-877.1U11 PILine® Motion Controller

For Ultrasonic Piezo Motors, 1 Axis, Inexpensive and Compact

  • Integrated power amplifier
  • PID servo control with dynamic parameter switching
  • Macro programmable for stand-alone functionality
  • Data recorder
  • Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python
C-877.1U11 PILine® Motion Controller
Product Description Specifications Downloads Quote / Order

Servo controller and power amplifier

Single-axis benchtop device with special PID controller for ultrasonic piezo motors. Integrated power amplifier for PILine® drives and class 1 positioners.

Interfaces and communication, encoder input

USB interface for commanding. Differential signal transmission (A/B). TTL inputs for limit and reference point switches.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. ID chip detection for fast startup. PID controller, parameter changing during operation. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Fields of application

  • Micromanipulation
  • Automation
  • Biotechnology
  • Sample manipulation
  • Sample positioning
  • Optical measuring technology

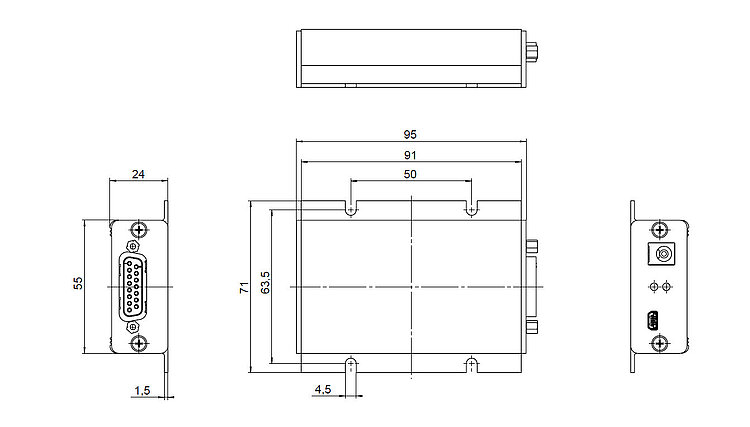

Specifications

Datasheet

Datasheet C-877.1U11

Version / Date
2018-03-26
pdf - 555 KB
Version / Date
2018-03-26
pdf - 564 KB
Version / Date
2021-01-18
pdf - 344 KB

Downloads

Datasheet

Datasheet

Datasheet C-877.1U11

Version / Date
2018-03-26
pdf - 555 KB
Version / Date
2018-03-26
pdf - 564 KB
Version / Date
2021-01-18
pdf - 344 KB

Documentation

Documentation

Short Instructions MS242EK

Digital Motor Controllers and Drivers: C-663 / C-863 / C-867 / C-877 / C-884 / E-861 / E-871 / E-872.401 / E-873

Version / Date
3.1.0 02/2021
pdf - 2 MB
Version / Date
3.1.0 02/2021
pdf - 2 MB
Documentation

User Manual MS232

C-877.1U11 Compact, Cost-Efficient Piezomotor Controller / Driver, 1 Channel, for PILine® Systems with Low Power Consumption

Version / Date
1.0.0 2017-05-03
pdf - 3 MB
Version / Date
1.0.0 2017-05-03
pdf - 3 MB

3-D Models

3-D Models

C-877.1U11 3-D model

C-877.1U11 3-D model

zip - 404 KB

General Software Documentation

General Software Documentation

Software Manual SM151E

PI GCS2 DLL

Version / Date
2.10.0 2019-08-26
pdf - 1 MB
English
General Software Documentation

Software Manual SM148

PIMikroMove

Version / Date
2.14.0 2020-01-30
pdf - 6 MB
English
General Software Documentation

Software Manual SM155

PI MATLAB Driver GCS 2.0

Version / Date
1.1.0 2016-02-29
pdf - 1 MB
Version / Date
1.1.0 2016-02-29
pdf - 1 MB
General Software Documentation

User Manual A000T0028

Updating PI Software with PIUpdateFinder

Version / Date
2020-05-20
pdf - 482 KB
Version / Date
2020-05-20
pdf - 488 KB
General Software Documentation

Software Manual SM146

GCS Array Data Format

Version / Date
1.2.1
pdf - 153 KB
English
General Software Documentation

Software Manual SM158

PI GCS2 Driver Library for NI LabVIEW

Version / Date
7.0.1 202-03-03
pdf - 3 MB
English

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
