- Cost Effective XZ (XY) & XYZ Positioning
- Travel Ranges to 100 x 100 x 100 µm
The P-281.xx and P-282.xx two-axis and three-axis Piezo "Block" Actuators are flexure positioning stages based on combinations of P-280 actuators (see Fig. 2.22/1). P-281.xx and P-282.xx multi-axis stages are available in three different sizes with travel ranges of 30, 50 and 100 µm.

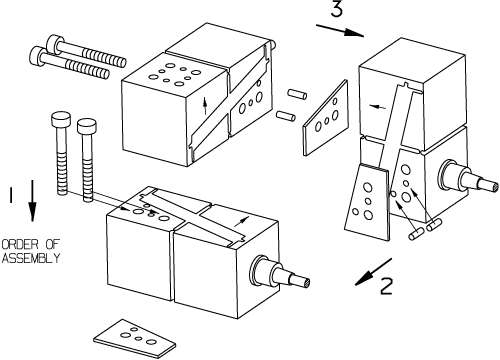

P-282 XYZ flexure stages are easily assembled by bolting the bottom stage (X) down first and then mounting the second stage (Z) and the third stage (Y). P-281 stages can be mounted as XZ (Fig. 2.23/1) and XY combinations.
Options:
P-705.00 positive polarity, click here for Piezo Actuators" section.
| MODEL SURVEY: | ||||
Models | Axes | Displacement | Consists of | Cable position |
P-281.10 | X,Z (X,Y) | 30 x 30 µm | 2 x P-280.10 | A + C |
P-281.20 | X,Z (X,Y) | 50 x 50 µm | 2 x P-280.20 | A + C |
P-281.30 | X,Z (X,Y) | 100 x 100 µm | 2 x P-280.30 | A + C |
P-282.10 | X,Y,Z | 30 x 30 x 30 µm | 3 x P-280.10 | A + B + C |
P-282.20 | X,Y,Z | 50 x 50 x 50 µm | 3 x P-280.20 | A + B + C |
P-282.30 | X,Y,Z | 100 x 100 x 100 µm | 3 x P-280.30 | A + B + C |
This is a legacy product that may have limited availability or may have been replaced. Ask a PI engineer for an equivalent new model.
