P-405 Picoactuator®

Multi-axis Actuators with Highly Linear Displacement

P-405 Picoactuator®
Product Description Specifications Downloads Quote / Order

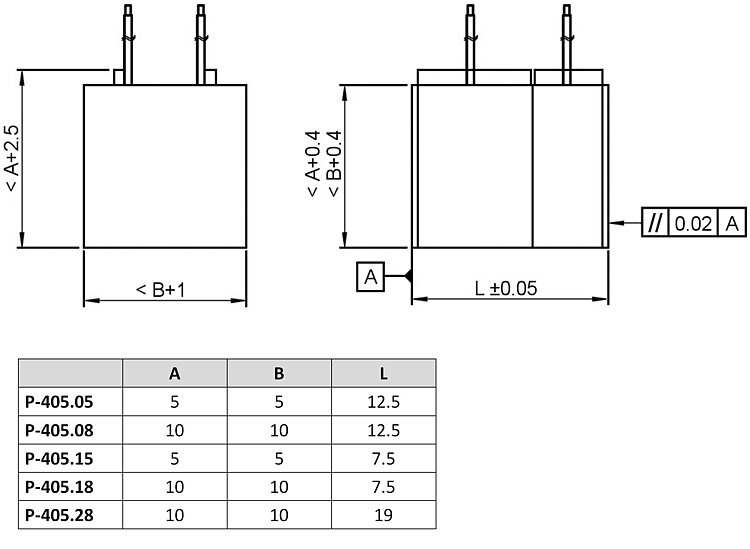

Stack actuator

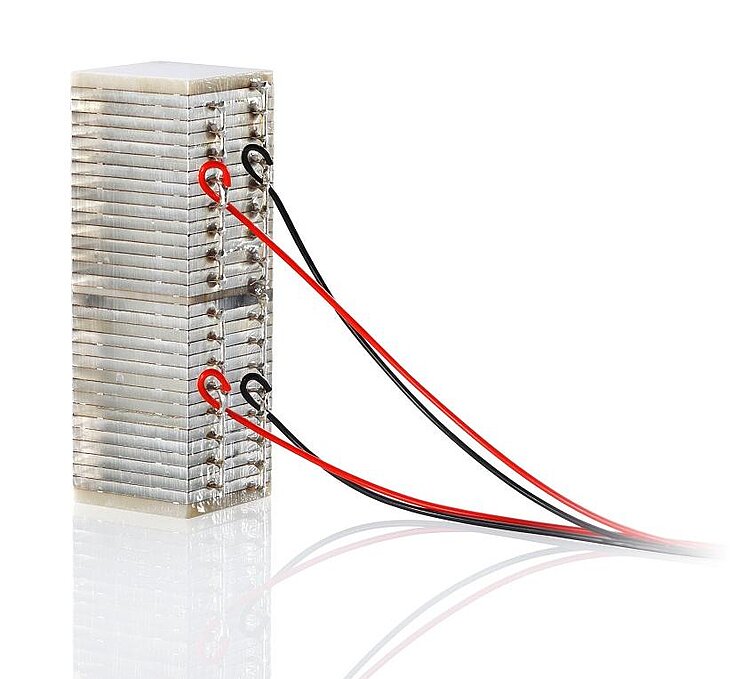

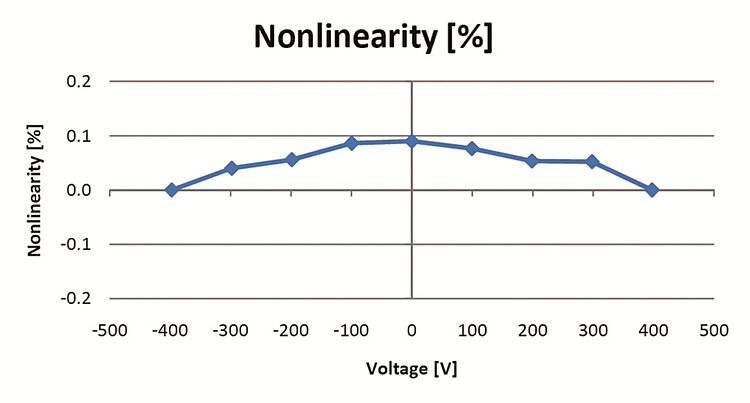

Bipolar operating voltage up to ±500 V. Nearly hysteresis-free motion (<0.2 %). No creep. Picoactuators®, as longitudinal and shear actuators, are configurable up to heights of 20 mm and maximum travel ranges of ±1.5 µm.

Technology

Picoactuator® longitudinal and shear actuators consist of a crystalline piezoelectric material. The specific displacement for shear actuators is ±0.02 % of the actuators length and ±0.01 % for longitudinal piezo actuators. This value is ten times lower when compared to piezo actuators made of lead zirconate titanate (PZT). The motion is highly linear and almost hysteresis-free.

Customized versions and other specifications on request

  • UHV-compatible to 10-9 hPa
  • Inner hole
  • Tips

Fields of application

  • Industry and research
  • Vacuum applications
  • High dynamics, open-loop scanning applications
  • Compensation of undesired transverse motion with nanopositioning systems ("out-of-plane" and "out-of-line")
