- Piezoelectric Fine Adjustment with Sub-Nanometer Resolution
- Precision Mechanics with Crossed Roller Bearings
- 6 x 6 x 6 mm Travel Range
- 30 x 30 x 30 microns Piezo Fine Travel Range

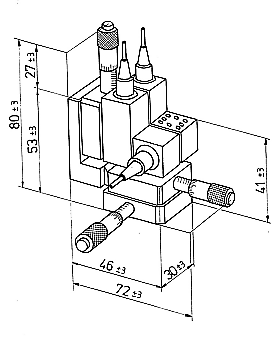

The F-111 Fiber Optic Alignment Stage / NanoPositioning System is an ideal solution for applications where a coarse "operating" position can be set manually and a scanning or tracking process (sub-nm resolution) is started from that position.
F-111 is based on a miniature M-313 XYZ Translation Stage and an XYZ Piezo Nanopositioning Stage.

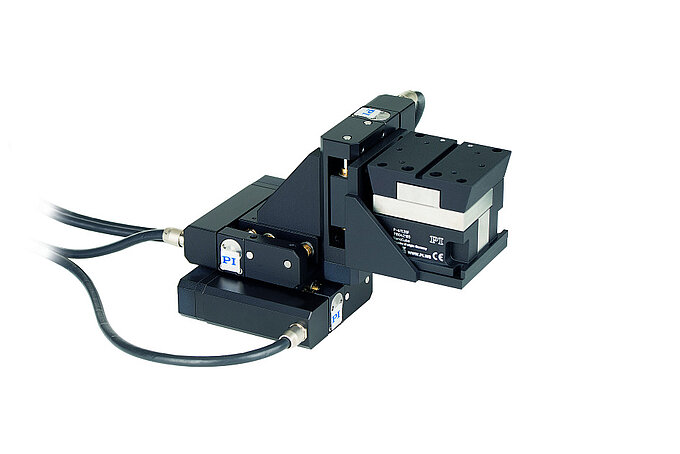

A higher precision and longer travel 3-axis piezo nanopositioning stage with closed-loop feedback for fiber alignment is shown below:
The advantage of the piezoelectric fine adjustment is based on the extremely high resolution, responsiveness and electrical controllability. If used with an external power meter and control software, the F-111 can be used as stabilization system for maximum optical power or as a scanner with a range of 30 x 30 x 30.
Fully automated multi-axis motorized fiber alignment stages are shown here:
The E-463 Piezo Amplifier Driver is recommended as driving system. It comes with an analog high speed interface (0 to 10 V). For digital control with a computer, the E-500 Modular PZT Control System with E-507 amplifier modules and optional E-515.i3 computer interface is available (see Piezo Controller Section).
More information on Active Fiber Optics and Photonics Alignment is here.
ORDERING INFORMATION:
F-111.00 XYZ Fiber Positioning System, 6 mm, 30 µm
OPTIONS:
F-010.00 Fiber Holder with Magnet
| TECHNICAL DATA: | ||
Model | F-111.00 | Units |
Axes | X, Y, Z |
|
Travel range | 6 | mm |
Piezo fine travel range | 30 | µm |
Resolution (piezoelectric) | 0.3 | nm |
Resolution (micrometer drive) | 1 | µm |
Max. load (Z-axis) | 20 | N |
Mechanical positioning system | M-313.00 |
|
Piezoelectric positioning system | P-282.10 |
|
Weight | 0.4 | kg |
Recommended amplifier /controller | E-463; E-500 |
|
