- 360 ° Coarse Range, 19° Fine Range
- Precision Micrometer Drive
- Piezo Option for High Resolution, Dynamic Scanning and Tracking
- 20 mm ø Clear Aperture
M-035 series high performance miniaturized precision rotation tables feature high resolution, excellent repeatability and minimum wobble. The rotary stages are equipped with double ball bearings for minimum backlash and high load capacity. Both the rotation table platform and the scale ring (graduated in 2-degree increments) can be independently coarse positioned over 360 degrees and then be locked by screws. For the highest precision and highest performance, high speed air bearing rotary tables are recommended.
The basic version, M-035.50 rotating table, is equipped with a micrometer drive and a zero-backlash magnetic coupling. The micrometer provides a positioning range of ±9.5 degrees.
Math on linear to rotation conversion see here.

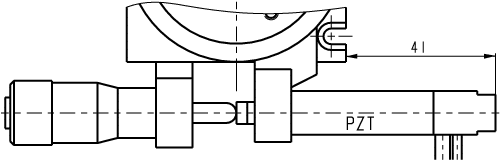

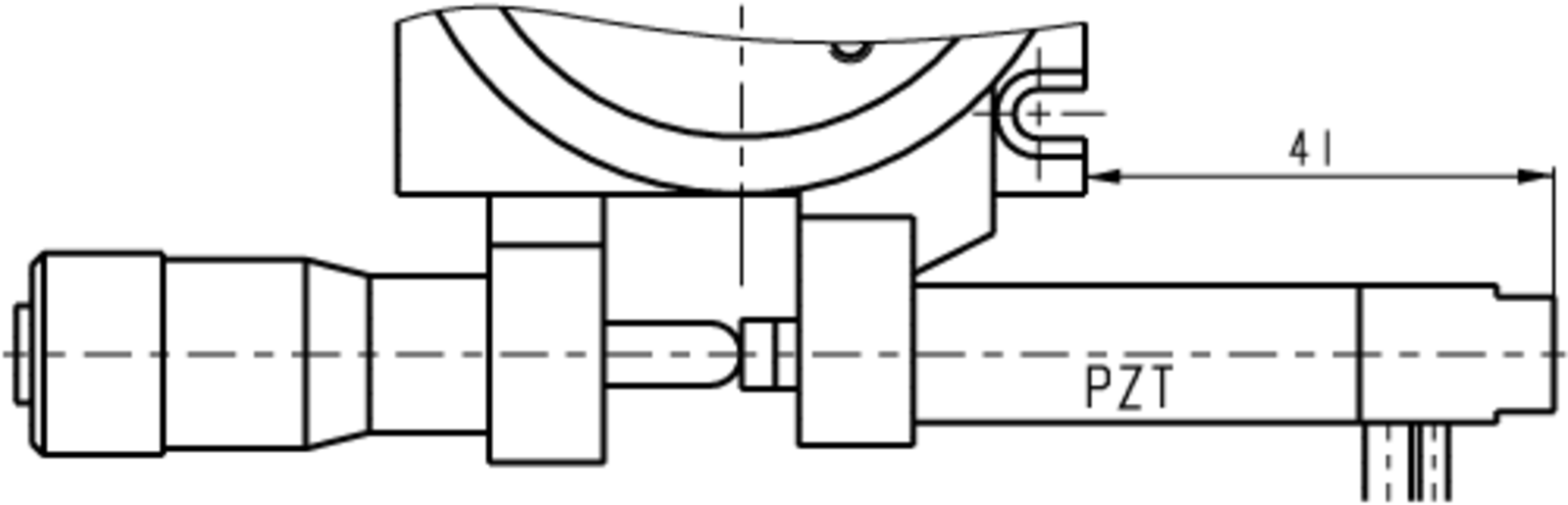

The versions M-035.PS and M-035.P0 feature additional piezoelectric fine adjustment over a range of ±520 µrad. They also allow dynamic operation such as scanning or tracking. The .PS version is equipped with a closed loop feedback piezo drive (model P-841.30), while the .P0 version has an open loop piezo drive (model P-840.30). Both drives provide a linear range of 45 microns and sub-nanometer linear resolution (see "PZT Actuators" section for further details and recommended drivers).
Upgrades:
M-035 stages without PZT drives or DC motor drives can be upgraded at a later date.
ORDERING INFORMATION:

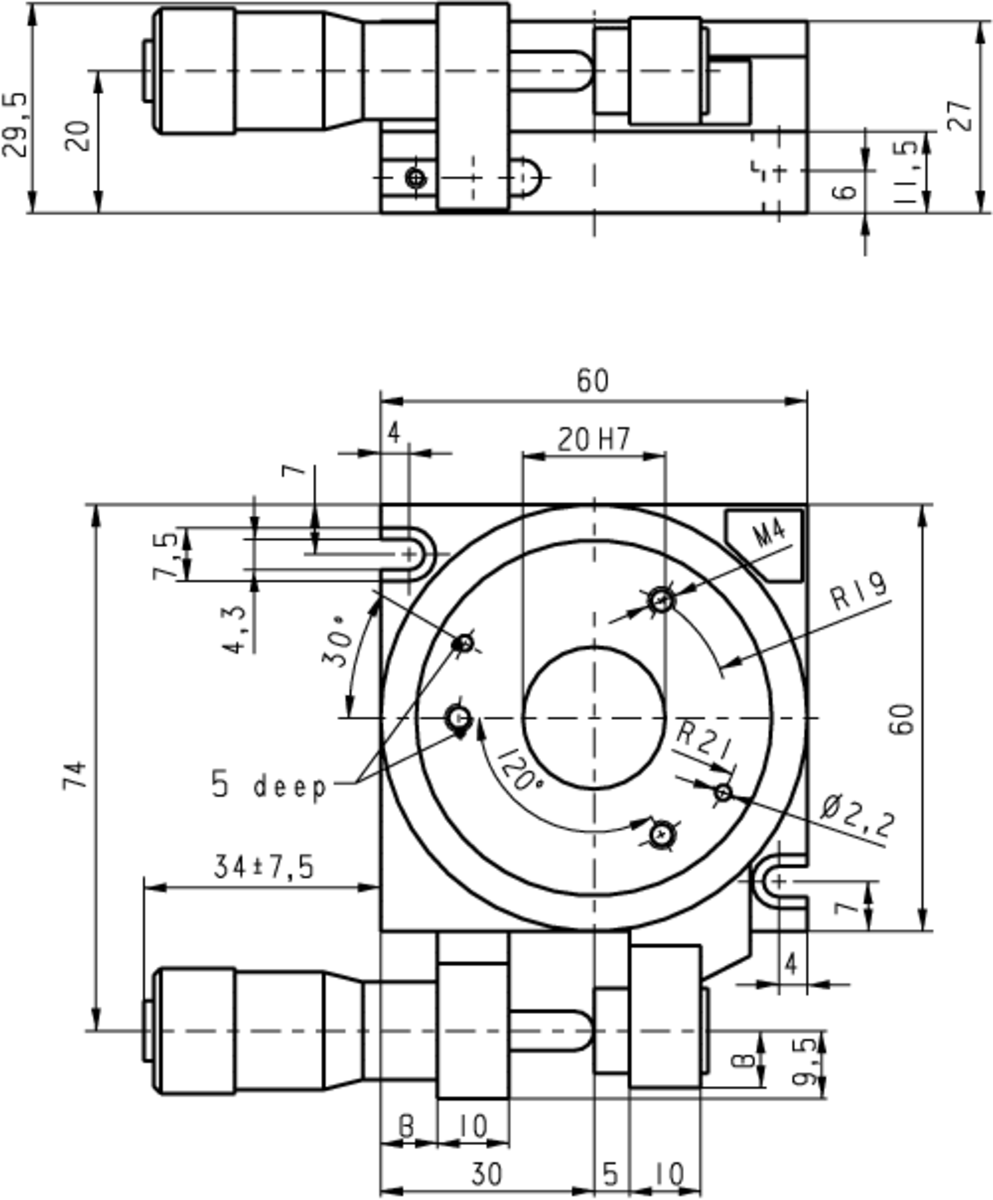

M-035.50 Tangential Rotation Stage, ø 60 mm, Micrometer Drive
M-035.P0 Tangential Rotation Stage, ø 60 mm, Micrometer + PZT Drive
M-035.PS Tangential Rotation Stage, ø 60 mm, Micrometer + Closed Loop PZT Drive
UPGRADES:
M-035.U0 Upgrade Kit with Open Loop Piezo Drive
M-035.US Upgrade Kit with Closed Loop Piezo Drive
M-035.UD Factory Installed Upgrade Kit with Servo Motor Drive
| TECHNICAL DATA: | |||||
Models | M-035.50 | M-035.P0 | M-035.PS | Units | <link>Notes |
Rotation range coarse | 360 | 360 | 360 | deg | |
Rotation range (micrometer drive) | ±9.5 | ±9.5 | ±9.5 | deg | |
Rotation range (PZT drive) | - | ±520 | ±520 | µrad | |
Min. incremental motion (micrometer drive) | 23 | 23 | 23 | µrad | A4 |
Rotation / linear input | 22.7 | 22.7 | 22.7 | µrad / µm | A5 |
Tangent arm length | 44 | 44 | 44 | mm | A5 |
Min. incremental motion (PZT drive) | - | 1 | 1 | µrad | A4 |
Repeatability (PZT drive) | - | - | 2 | µrad | |
Wobble | < 150 | < 150 | < 150 | µrad | |
Maximum axial force | ±300 | ±300 | ±300 | N | |
Maximum torque (q X, q Y) | ± 3000 | ± 3000 | ± 3000 | mNm | |
Maximum torque CW* | 3000 | 3000 | 3000 | mNm | |
Maximum torque CCW* | 50 | 50 | 50 | mNm | |
Drive | M-622 | M-622 | M-622 | ||
PZT drive | - | P-840.30 | P-841.30 | D1 | |
Weight | 0.4 | 0.5 | 0.52 | kg | |
Material | Al, St | Al, St | Al, St | L | |
Recommended PZT controller | - | A, C, G | D, H | M | |
This is a legacy product that may have limited availability or may have been replaced. Ask a PI engineer for an equivalent new model.
