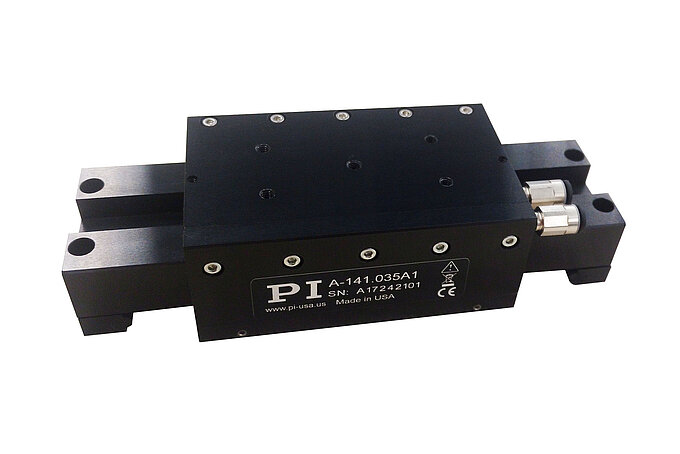

Air Bearings & Stages

Air Bearings & Stages

Air bearing stages are used where vibration-free motion is required, velocity needs to be highly constant, and optimum angular repeatability is requested.

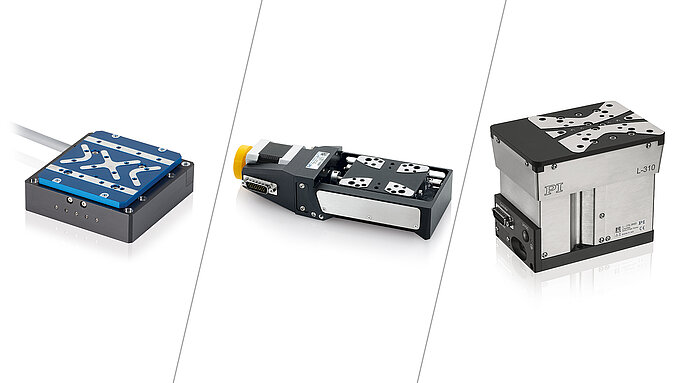

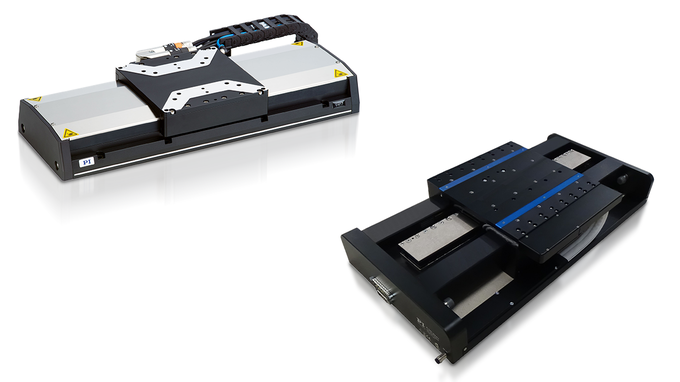

Linear Stages

Linear Stages

PI offers a wide range of motorized linear stages to supply high-precision industrial markets like semiconductor and photonics, as well as high-end research. Vacuum versions are available for a large number of different models. Multi-axis compositions can be set up with adapter brackets or specialized vertical stages and compatible rotation stages.

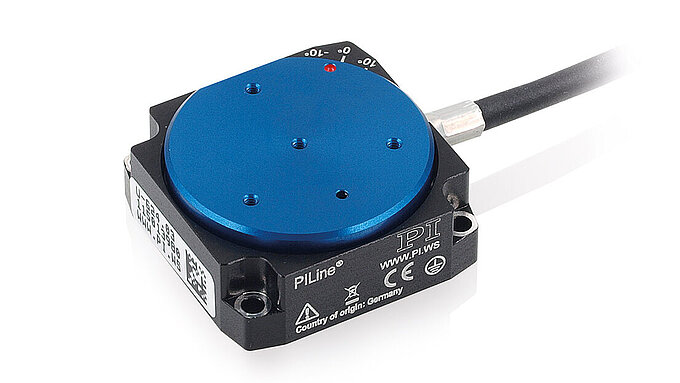

Miniature Rotation Stages

Miniature Rotation Stages

Rotation stages with piezomotor make for particularly compact sizes. These compact rotation stages can be used in optics applications, where they position, for example, filters reliably and with excellent repeatability. Rotation stages can be mounted on linear stages without adapter and allow for flexible combinations of multi-axis positioning systems.

Micropositioning Stages

PI-USA: Precision Translation Stage, Linear Actuator, Rotation Stage, Micropositioning, Hexapods, Motorized Actuators, Precision Positioning Stages

Motorized Stages

Our engineers work with our customers to find the best drive and bearing technology for each individual application. Having access to multiple drive and positioning technologies allows an open discussion with a better outcome for the customer.

Linear Stage - Precision Positioners Overview

Motorized Linear Slides

PI offers a large variety of high resolution linear slide positioning systems.

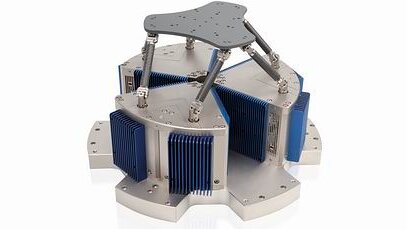

Multi Axis Motion Systems

Fast Multi-Channel Photonics Alignment Systems

Fast Multi-Channel Photonics Alignment

Piezo scanners take care of fast, continuous scanning tasks, where durability, dynamics, and precision matter. The larger travel ranges are realized with XYZ combinations or 6-axis hexapods. Integrated routines make it possible to perform single-axis alignments up to complex, multi-axis fiber array positioning within the shortest possible time.

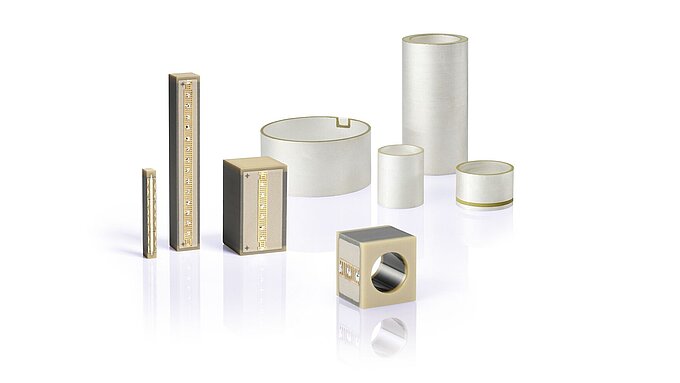

PI Ceramic Actuators

Piezoelectric Transducers & Actuators

Piezoelectric ultrasonic transducers are available in a wide range of shapes like disks, plates or tubes, and different performance levels. They can be adapted to application requirements by using different piezoceramic materials, electrodes, and assembling technology.

PI OEM Special Linear Actuator N-216

PiezoWalk® Actuators with High Force & Stability

PiezoWalk® actuators are highly specialized piezobased drives intended for integration. Designed for use in the semiconductor industry, they boost on reliability, position resolution and long-term stability. Their special features include minimum size with high force generation. The drive itself is resistant to magnetic fields.

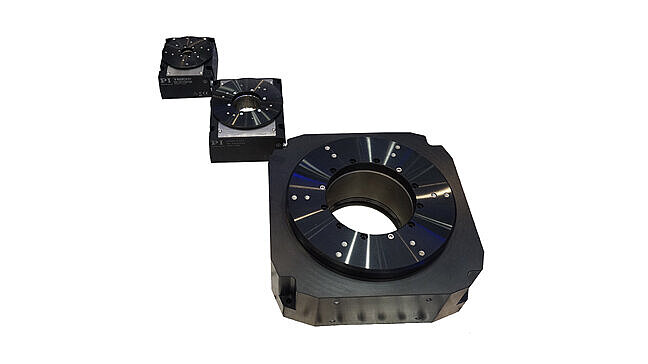

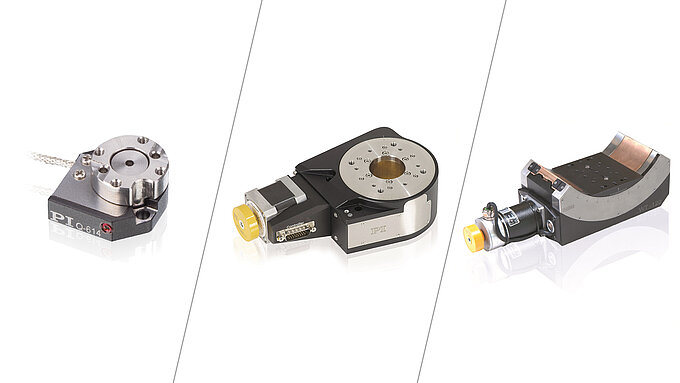

Rotation Stages

Rotation Stages

PI offers stages with all kinds of motorization and guiding options: air-bearing, torque motor driven, motorized worm-gear coupled, tiny piezomotor stages and specialized goniometer stages with orthogonal tip-tilt mounting option.

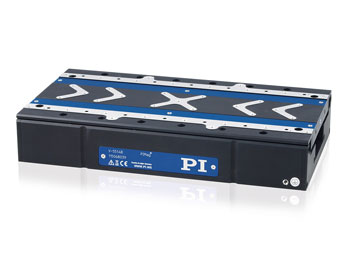

Physik Instrumente (PI) Linear Actuators V-277

Voice Coil Actuators with High Dynamics & Force Control Option

Voice coil drives show very high velocities and allow for fast step-and-settle. Wear-free flexure guidings or mechanical guidings are available. The optional force control allows for stand-alone solutions in pressure-sensitive device testing.

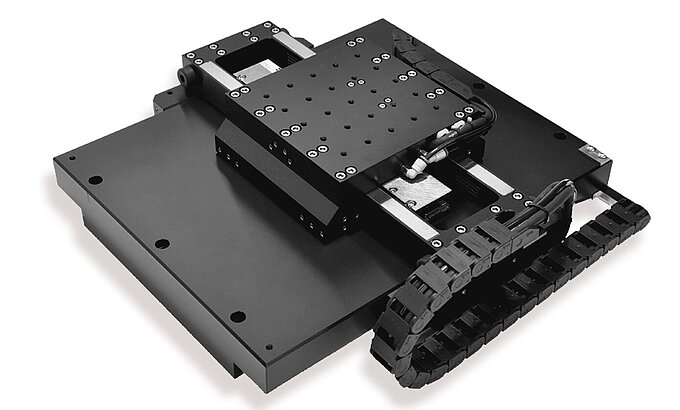

XY Stages

XY Stages

Stability, precision and dynamics are crucial in the application fields of PI’s XY stages. They are the basis of high throughput rates and reliable operation. PI makes use of own developments in the fields of PIMag® magnetic linear motors and PIglide air bearings. Industrial production and quality control benefit from PI’s high-load XY stages and planar scanners.

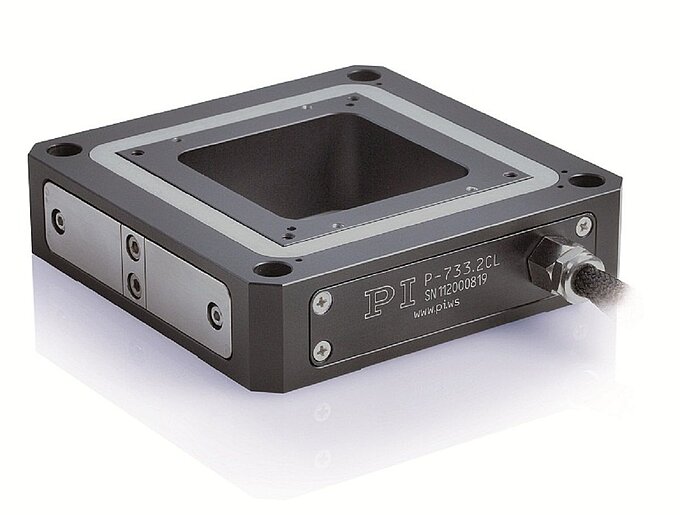

XY Piezo Flexure Stages

XY Piezo Flexure Stages

High-precision 2-axis nanopositioning systems integrate PICMA® piezo actuators for maximum reliability. Repeatable, drift-free positioning with optimal stability is possible by the use of high-quality nanometrology sensors.
