Micro Stage Family of Fast and Compact Micropositioners Powered by Ultrasonic Servo Motors

Lightweight, fast, and highly stable, PI’s new line of micro stages for precision motion and positioning applications are easy to control and integrate into industry and research applications.

Precision motion and nanopositioning leader PI (Physik Instrumente) delivers a family of compact linear and rotary stages driven by ceramic direct-drive motors. The patented ultrasonic motors provide smooth motion with high resolution and a high dynamic range. The self-clamping motor principle locks the stage into place, devoid of creep, once a target position has been reached. This intrinsic brake-like behavior comes at no extra cost, and provides advantages that are not available with classical electro-magnetic drive technologies.

Medical Devices, Optical Instrumentation, Photonics Alignment, Super-Resolution Microscopy

XY Micro Stages, Compact Linear, and Rotary Tables: Fast and Quiet, for Highly Dynamic Control

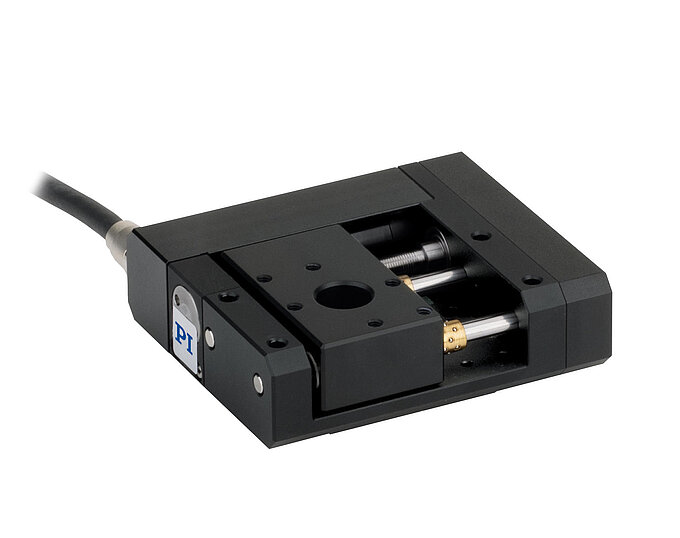

Two linear stages with 18mm and 22mm travel are available, as well as an XY stage providing 22x22mm. Several encoder options, from 0.4µm to 10 nanometers, are standard. All stages achieve closed-loop peak velocities to 200mm/sec. The rotary stages come with turn-table diameters from 20 to 50mm, encoder resolution down to 17µrad, and maximum velocity of 720 degrees per second.

The low inertia direct drive (no gears and other mechanical components to convert motion) allows for a very dynamic start-stop behavior with settling times in the millisecond range. Based on the ultrasonic principle with drive frequencies >100kHz – way beyond the human hearing range – the motors are silent. Displacement is generated in continuous sub-nanometric increments, leading to extremely smooth motion with a wide dynamic range.

Multi-Axis Combinations
Linear and rotary stages can be combined to form multi-axis combinations.

Low Power Requirements
Due to the high efficiency of the ultrasonic motors, the miniature stages can be integrated into mobile measuring and medical devices. Vacuum compatible versions are also available.

Watch the Ultrasonic Motor Drive Principle!

OEM and Bench-Top Motion Controllers, Software Package
To take advantage of the operating principle, providing superior dynamic performance with settling times in the millisecond range while maintaining high resolution and smooth operation, ultrasonic motors benefit from advanced control strategies, such as automatic switchover between several static and dynamic PID parameter sets and adaptive frequency tracking. PI offers a number of ultrasonic motion controllers available in desktop, rack-mount, and OEM configurations. An ASIC chip containing the motion control algorithms is also available for OEM customers.  A comprehensive software package is included: drivers and example programs for LabVIEW, dynamic libraries for Windows and Linux, MATLAB are available. Interfaces include TCP/IP, USB, RS-232 and analog.

Details: Ultrasonic Motors Details: Closed-Loop Controller, C-867 Details: Compact, Low Cost Controllers for Ultrasonic Motors, C-877, also comes in OEM version Article Video



Family of Fast and Compact Micro-Positioning Stages Powered by Ultrasonic Motors
