Thank You!

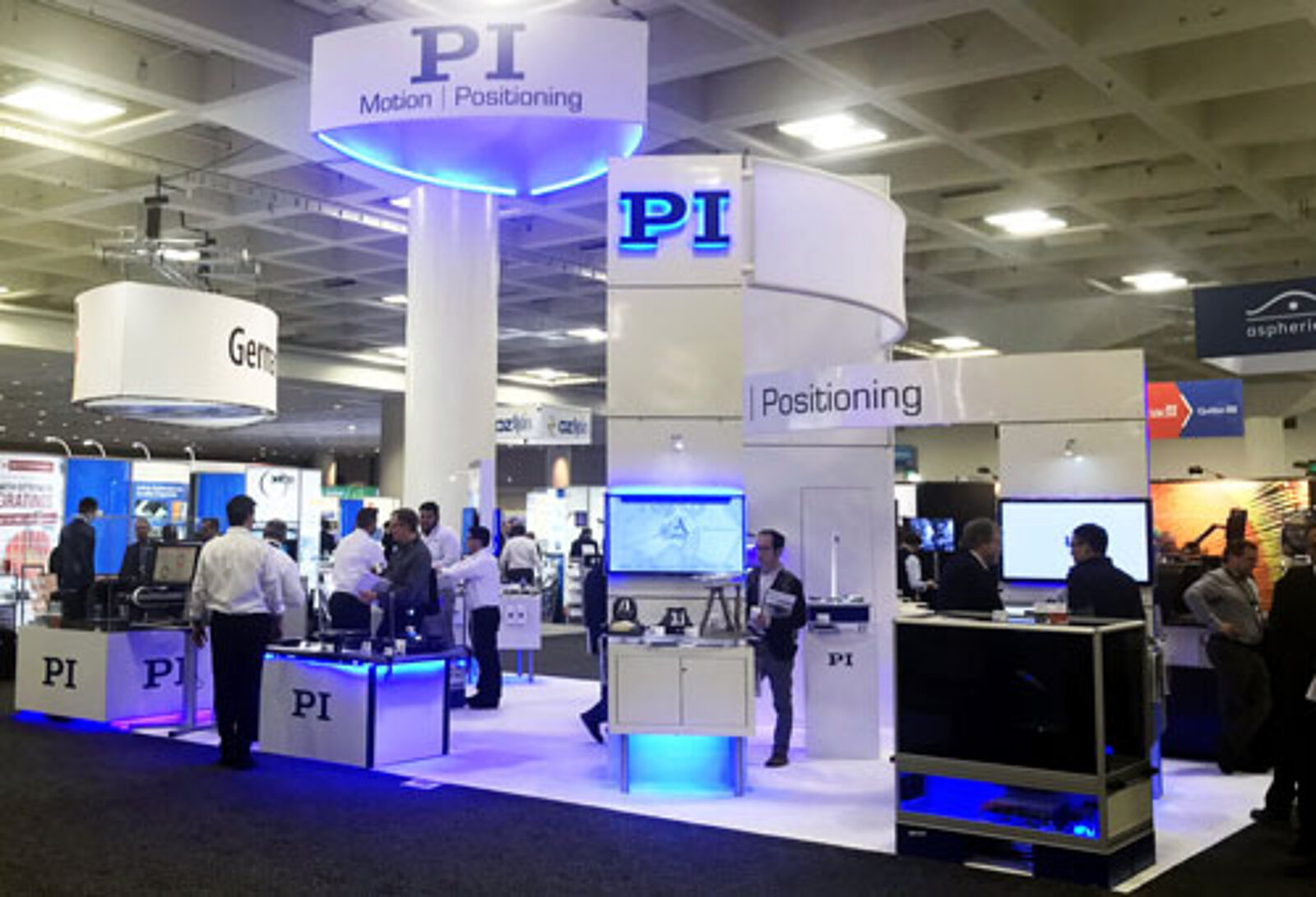

Thanks for stopping by the PI booth at Photonics West / BIOS.

It was nice to meet you.

You may not have won a free ipad from PI, but you now have a trusted resource in PI’s engineers.

Picking the right precision motion component or sub-system is crucial for success.

Let our engineers give you a hand!

Free advice can save you time

In case you forgot which PI products you saw in motion at the show,

simply scroll down for a quick refresher.

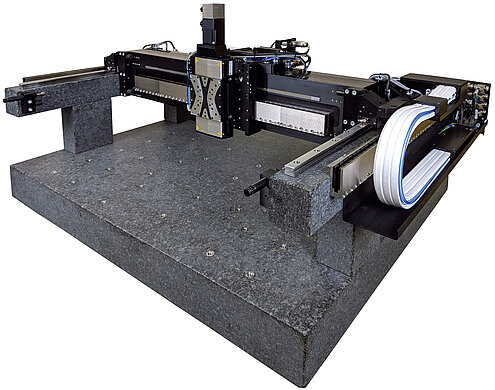

Gantries for 3D printing and laser material processing

A new hybrid gantry design combines the advantages of air bearings and traditional bearings in to one compact, high performance systems. Operated with state-of-the-art ACS motion controllers, higher accuracy and throughput can be achieved, while programming of complex motion profiles is facilitated with easy to use software. Applications are found in laser machining, 3D printing, photonics, robotics, microscopy, and precision industrial automation applications.

Application examples Product overview

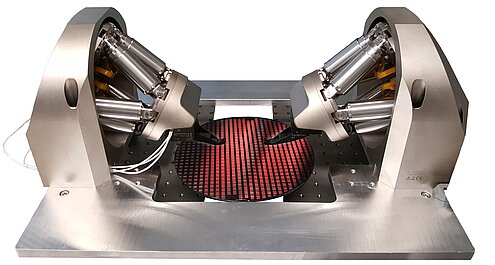

Photonics alignment / fiber alignment systems

Silicon Photonics (SiP) means photonic devices are now being fabricated alongside microelectronics on silicon wafers. Testing and packaging these requires nanoscale alignments across multiple channels with high throughput.

Application examples  Learn more

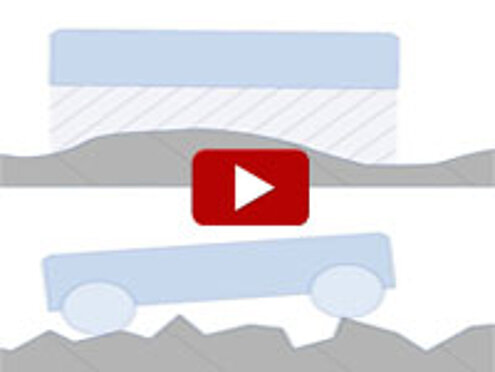

Air bearings myths and FAQ’s

Unlike mechanical bearings, air bearings free of wear and friction. The article answers questions on when to use air bearings and when to go with mechanical or flexure bearings.

FAQs  Myths  Scanning Performance  Satellite Testing  Rotary Air Bearings

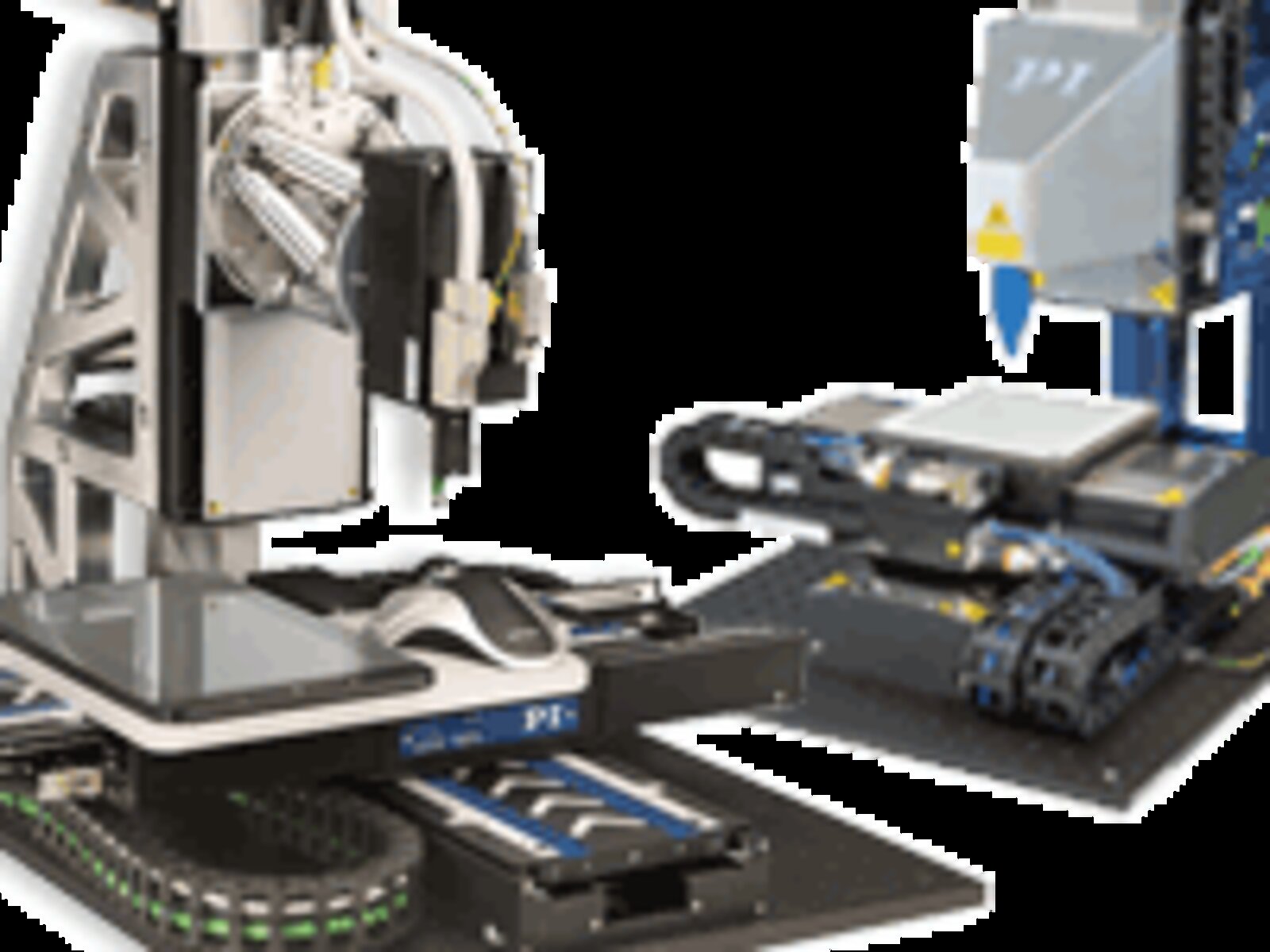

Multi-axis automation production assemblies

At the nanometer level, multi-axis piezo-mechanic nanopositioning systems make possible 3D nano-manufacturing based on laser lithography. Focus and path precision are extremely critical requiring mechanics and servo electronics to provide nanometer precise trajectory control.

Application examples

6-Axis Parallel Kinematic Machines (PKM’s)

PKM’s are often referred to as Stewart Platforms. Based on a 6-axis (XYZ, Pitch, Roll, Yaw) actuator system arranged in parallel between a top and bottom platform, PKM’s have many advantages over serial kinematics designs, such as lower inertia, improved dynamics, smaller package size and higher stiffness.

Product overview  Watch video

Piezo nanopositioning basics – precision, speed, stability

There are several ways to achieve nanometer precision motion.The best positioning systems avoid friction all together, in both the drive system (motor) and in the guiding system (bearings). Piezo drives provide much more than just nanometer resolution.

Learn more

Tools for Imaging / Bio-Nanotech, Life Sciences

Piezo nano-positioning stages are essential tools for high-resolution microscopy, such as Super Resolution Microscopy or AFM. Their sub-atomic resolution and extremely fast response allow researchers to create higher-quality images faster.

Product overview
