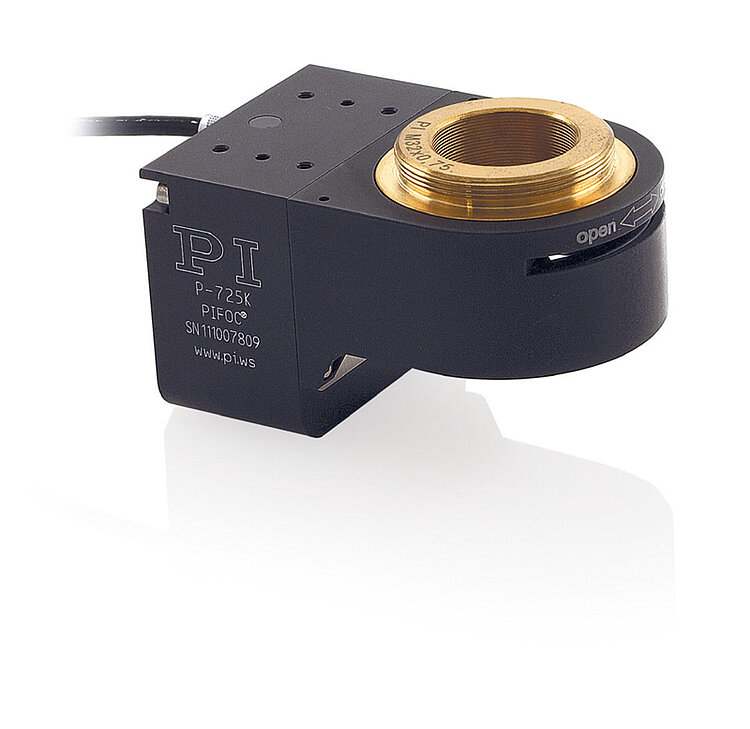

P-725KHDS PIFOC® Objective Scanner with High Dynamics

Nanometer Resolution for Heavy Objectives

P-725KHDS PIFOC® Objective Scanner with High Dynamics
Product Description Specifications Downloads Quote / Order
  • Travel range 400 µm
  • Resonant frequency 120 Hz, with 400 g load
  • Step-and-settle 20 ms, with 400 g load
  • QuickLock thread adapters up to M32

PIFOC® objective scanner

1 axis. Frictionless flexure-guided design. Capacitive position sensor for maximum stability and linearity. QuickLock adapter for easy attachment



PICMA® high-performance piezo drive

Piezo ceramic actuators with all-ceramic insulation. Longer lifetime, humidity resistance and operating temperatures to 80°C



Fields of application

Microscopy, confocal microscopy, 3D imaging, screening, autofocus systems, surface analysis. Ideal for multiphoton microscopy due to high dynamics at heavy loads



Specifications

Datasheet P-725KHDS

Version / Date
2015-01-30
Version / Date
2015-01-30
Document language
pdf - 750 KB
pdf - 749 KB

Downloads

Datasheet

Datasheet P-725KHDS

Version / Date
2015-01-30
Version / Date
2015-01-30
Document language
pdf - 750 KB
pdf - 749 KB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

P-725KHDS

PIFOC® Piezo Nanofocusing System with High Stiffness, 400 µm, Capacitive Sensors, Sub-D Connector, for QuickLock Adapter

Ask about custom designs!

Questions? - Ask a PI Engineer

Compatible Electronics
