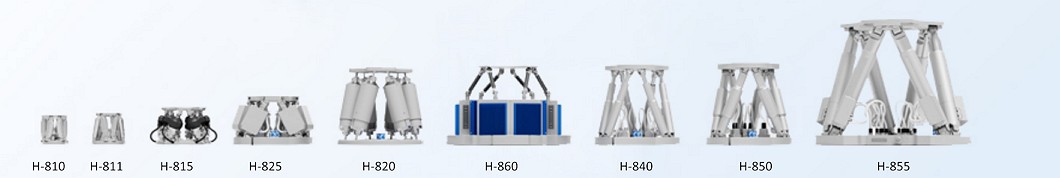

Hexapods provide motion in all 6 Degrees of Freedom, X,Y,Z, Pitch, Roll, Yaw. 6-DoF motion platforms and positioning systems are often referred to as Stewart Platforms. Hexapod motion is based on 6 actuators arranged in parallel between a top and bottom platform. PI parallel kinematics (PKM) precision positioning systems have many advantages over conventional 6-axis positioners (serial kinematics stages), such as lower mass and inertia, improved dynamics, smaller package size, and higher stiffness.
Download PDF: Hexapod technology and available precision parallel positioners
- Why should I use a Hexapod?
- Can it operate in any orientation?
- How do I control it?
- Is the motion smooth?
- How fast can the platform move?
- What are some common applications?
- Is it affordable?
- What software support is available?
- What environments can a PI Hexapod operate within?
- I only need 4 or 5 Degrees of Freedom!
- What if I need additional travel in one or more axes?
- What about servo tuning?
- Are Parallel Kinematics stiffer than conventional 6-axis stages?
- Can I program it in LabView?
- How reliable are they?
- How do I synchronize all axes?
- Can the hexapod bind up?
- Can it be controlled manually?
- Are all Hexapods created equal?
- What are the advantages of working with PI?
- What is the smallest PI hexapod?
Why Should I Use A Hexapod?
There are two ways to get multi-axis motion – stack individual stages or use a hexapod (Steward Platform). Customers typically choose the hexapod approach for the higher stiffness and virtual pivot point.
Higher stiffness comes from 6 actuators moving a single platform directly. With higher stiffness comes better stability due to higher resonant frequency and a better ability to make short, fast moves due to lower moving mass.
With a Stewart Platform, the center of rotation is defined in software by the algorithms that coordinate leg motion. By comparison in a multi-axis stage configuration the center of rotation is defined by choice of bearings and alignment of stage axes. The “Virtual Pivot Point” allows a customer to choose the center of rotation based on the application. In many cases an optically significant point.
Can It Operate In Any Orientation?

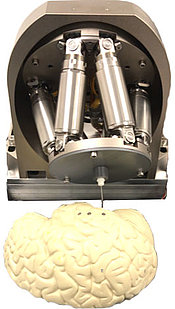

Upside-down hexapod setup for evaluating highly precise bioelectrode positioning. PI hexapods are designed to run in any orientation. They do not rely on external springs for preloading that would weaken if run upside down. The load capacity varies with the orientation. PI provides simulation software to exactly calculate the forces on each actuator for any orientation.
How Do I Control It?
PI makes hexapod control easy. All PI Hexapods are controlled by dedicated controllers. There are only two cables required to connect the controller to the mechanics – one for power and one for the motor and encoder signals, and they are included as well as the software. Controllers with Ethercat connectivity for easy integration into industrial processes are also available. PI hexapods have a high level command set. For example, the command to move to X=10mm position is MOV X10. The PI hexapod motion controller makes the calculations to coordinate motion of individual legs. More information on hexapod controllers >
Is The Motion Smooth?
Yes! The PI controller coordinates the motion of each leg to create smooth motion at the platform. Further, PI hexapods have vector path planning, so the mechanics can follow a customer-defined trajectory. PI Stewart Platforms can achieve smooth motion, take a vector path, and follow defined trajectories due to the combination of mechanical and control technologies.
- PI Hexapod joints allow full range of motion while achieving the required precision. This requires careful design and specification of joint geometry and bearing tolerances.
- PI Hexapod Controllers coordinate the individual leg motions in firmware to achieve precise, smooth motion along the desired trajectory. This takes hundreds of thousands of calculations per second.

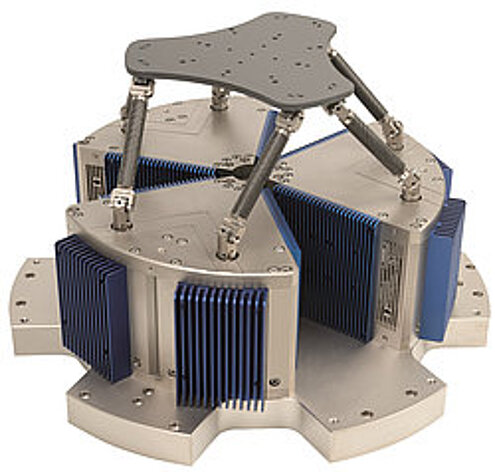

How Fast Can the Platform Move?
H-860, High dynamics Hexapod 6DOF motion platform based on flexure joints and linear motors The fastest hexapods PI makes are driven by voice coil linear motors. These 6DOF motion platforms provide dynamics up to 100 Hz and are often used to simulate motion such as hand tremble, vehicular vibrations, vessel motions, drone motions etc. For more information read Hexapod in Camera Testing and Hexapod 6DOF Motion Platform in Drone Testing.
What are some Common Applications?
Optics and Photonics

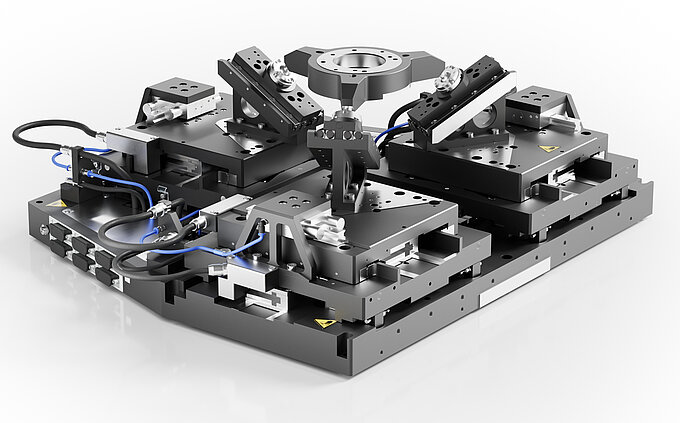

Active alignment of photonics components, precision assembly of optics, camera lens elements, optical metrology, 6DOF motion simulation, 6DOF motion cancellationVehicle Dynamics, Vehicle Manufacturing

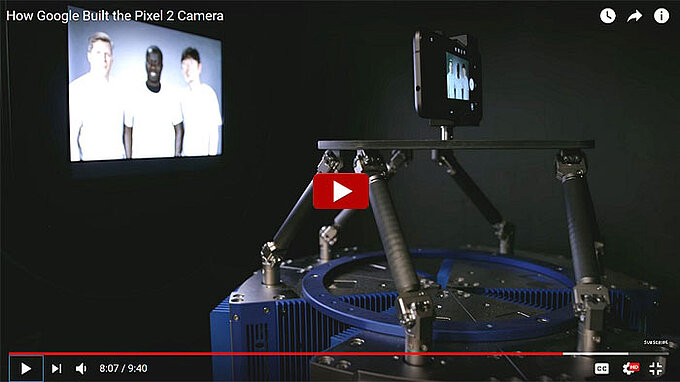

6DOF motion simulation, 6DOF motion cancellation , automotive assemblyAstronomy & Aerospace
Precision active alignment of reflectors, large panels, etcIndustrial Production

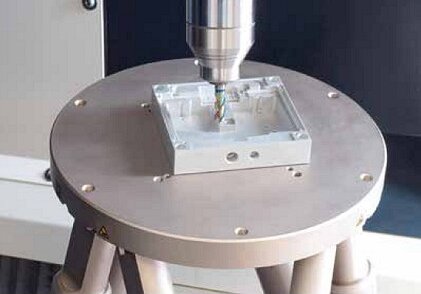

Precision Machining, Alignment of Panels, PartsBioMedical
Dental research [work], robotics in surgeryBig Science
Beamline InstrumentationIs it Affordable?
PI has been building hexapods for over 30 years – we started with custom hexapods for large telescopes. Today, PI builds hexapods for industrial and scientific applications. Customers prefer them over stacked systems because they are cost-effective, robust, and provide a lower cost of ownership when used in the applications they are designed for. PI hexapods start under $30,000; most are in the $40,000 to $60,000 range. Very large, high load, high precision hexapods can run higher.
Hexapods are also more precise than a stack of stages. When you set up a stage based multi-axis system, typically the precision per axis is specified. However, the overall precision is significantly lower, because runout, angular errors, and flex in the individual axes can multiply at the functional point of motion. When comparing prices, consider PI hexapods are backed by a 2 year warranty and are complete with cables and software. You also get the experience and global support of the market leader.
What Software Support Is Available?
Hexapod startup GUI software The controller is specifically designed for 6-axis parallel kinematics with internal coordinate transformation and path planning, refined over more than 2 decades of hexapod design & manufacture at PI. In addition to PI’s MikroMove start-up software, LabView drivers, Windows DLLs, and programming examples are included. An Ethercat interface is optional as well as E-stop. The controller can also run absolute position encoders. PI also provides work space simulation software. With PI’s Virtual Hexapod machine, customers can start to test their own programs before the hexapod delivery. Optionally available is PI’s advanced PIVeriMove collision avoidance software, in case the hexapod is used in a confined space with external obstacles.
Hexapods use the PI General Command Set (GCS). GCS provides numerous preprogrammed functions to accelerate the orientation and application development phase significantly. GCS is consistent for all PI motion controllers.
Additional software:
PIMikroMove GUI
Is a very powerful graphical program ensuring rapid start-up right out of the box. It also integrates a Macro language, scan/align algorithms, and a data recorder for system analysis.LabVIEW
PI provides complete open source LabVIEW drivers sets to facilitate programming.Text-Based Programming Languages
All common programming languages under Windows & Linux with libraries and code examples.Supported languages and software environments
C, C++, Python, Visual C++, Visual Basic, Delphi, LabVIEW, MATLAB, EPICS, TANGO, MetaMorph, µManager and all programming environments that support loading of DLLsSimulation Programs
Determine work space and permissible load under different Hexapod orientations. A special software tool included with each PI Hexapod calculates and displays the limits graphically.Emulation: Hexapod Virtual Machine (VM)
Saves cost and time because application programs can be developed and tested on the customer’s PC, before Hexapod delivery. VM emulates mechanics, controller and peripherals.PIVeriMove Graphical Collision Avoidance Tool
Enables simulation of the Hexapod in the application environment to avoid positions where the Hexapod / load would collide with the surroundings. Import of peripheral objects via CAD data.HexaApp
Wireless Hexapod control via iPhone, iPad or iPodWhat Environments can a PI Hexapod Operate Within?
PI Hexapods are available for different environments. A vacuum option for 10-6 Torr is standard for most hexapods, and custom versions up to 10-9 Torr are available on request.
Also, with PI’s piezo ceramic motor expertise, non-magnetic and EUV compatible Hexapods are feasible, as well as wide temperature ranges.
I Only Need 4 or 5 Degrees of Freedom!
A Hexapod will always have 6-degrees of freedom. In many cases the stiffness and virtual pivot point capability of a hexapod make it a better choice in 4 and 5 degree of freedom applications. In many more cases, 4 and 5 degree of freedom applications are better suited to a stack of 1-axis stages. In which case, there is a good selection of PI stages to choose from. And in either case, PI will seek to understand the requirements of your application and help you make a good choice about the precision motion design path.

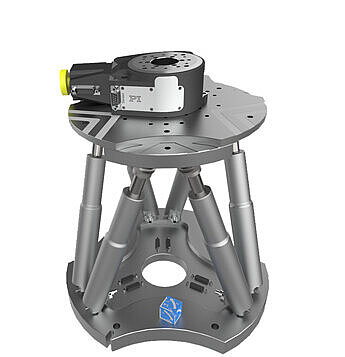

What If I Need Additional Travel In One or More Axes?
All PI hexapod controllers can handle 6+2 axes. In addition to the hexapod, two more linear or rotary stages can be controlled.
What About Servo Tuning?
Unlike a stack of conventional positioning stages, servo parameters of PI hexapods usually never have to be tweaked. This is in part due to the parallel kinematics nature, where the load is symmetrically divided between all actuators. There is only one common moving platform and because of the very high system stiffness, the servo is much more forgiving. If it needs to be tuned, the parameters are identical for all 6 axes, another advantage over serial kinematics.
Are Parallel Kinematics Stiffer than Conventional 6-Axis Stages?
PI hexapods are significantly stiffer than a stack of 6 individual stages. The moving platform is also significantly lighter than the sum of the individual stages. Consider that the bottom stage in conventional 6-axis positioner has to move 5 stages plus the mass of its own platform. As a result, the high stiffness and very low inertia make a system that is very stable and extremely responsive to motion input.
Can I Program it in LabView?
Yes, PI provides a complete software package with Open source LabVIEW drivers. We are always up-to-date with the latest Labview drivers, offer them free with the controller, and many of our customer use Labview successfully with our support from Auburn, MA or Irvine, CA.
How Reliable are They?
PI hexapods are very reliable. There are no exotic or overly sensitive parts used in our hexapods. No dragged cables, 6 identical actuators, precision high load bearings, design and manufacturing continually improved over more than 25 years. PI’s own dedicated Hexapod controller make it independent of 3rd party firmware of hardware changes.
How Do I Synchronize All Axes?
You don’t have to worry about that, it is all handled internally in the hexapod controller. The controller synchronizes the individual legs thousands of times per second. This is completely transparent to the user who only enters desired motion coordinates of the top platform.
Can It Be Controlled Manually?
Yes, there are two ways: with the optional manual control pad, and wirelessly, with the free iPad hexapod app.
Are All Hexapods Created Equal?

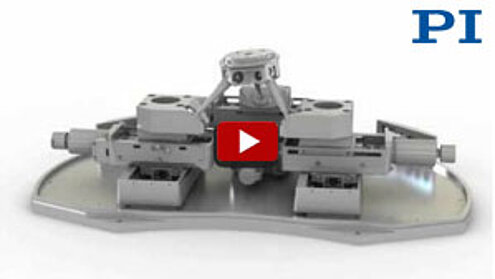

No. There are many ways to build a hexapod. PI offers several designs with passive and active struts, self-locking hexapods, servo motor-driven, and piezo-motor driven ones, etc. The SpaceFAB planar 6-axis design provides longer travel in the XY plane and a lower profile, at slightly reduced angular travel ranges.
What Are The Advantages of Working With PI?
- Experience: Since the early 1990’s, PI has built more micropositioning and nanopositioning hexapods than anybody else in the world.
- Performance: The performance of a hexapod depends largely on the precision of the joints. PI designs and manufactures custom joints, e.g. offset cardanic joints for the highest possible stiffness, or flexure joints for nanometer precision applications. Next to the joints, a lot of the precision comes down to the metrology, math and controller. Here again, coming to this from the nano-world, PI’s test & metrology equipment and experience makes the difference.
- You get a complete package and PI’s expert global support.

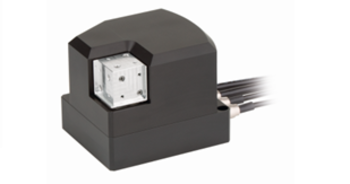

What is the smallest PI hexapod?
This compact 6-axis parallel manipulator fits in an envelope of 80x80x48 mm³. Our smallest 6-axis positioner is actually not a hexapod, but a parallel kinematics design with similar performance to traditional hexapods, based on three XY piezo motor stages driving a tri-pod.
Blog Categories
- Aero-Space
- Air Bearing Stages, Components, Systems
- Astronomy
- Automation, Nano-Automation
- Beamline Instrumentation
- Bio-Medical
- Hexapods
- Imaging & Microscopy
- Laser Machining, Processing
- Linear Actuators
- Linear Motor, Positioning System
- Metrology
- Microscopy
- Motorized Precision Positioners
- Multi-Axis Motion
- Nanopositioning
- Photonics
- Piezo Actuators, Motors
- Piezo Mechanics
- Piezo Transducers / Sensors
- Precision Machining
- Software Tools
- UHV Positioning Stage
- Voice Coil Linear Actuator
- X-Ray Spectroscopy
USA / Canada
contact@pi-usa.usEAST
(508) 832-3456
MIDWEST
(508) 832-3456
WEST
(949) 679-9191 (LA Area & Mexico)
(408) 533-0973 (Silicon Valley/Bay Area) - Resources
