P-726 PIFOC High-Load Objective Scanner
Highly Dynamic Scanning System with Long Travel Range for Heavy Objectives
- Highly dynamic positioning and scanning for large objectives
- Resonant frequency 1120 Hz; 560 Hz with 210 g objective mass

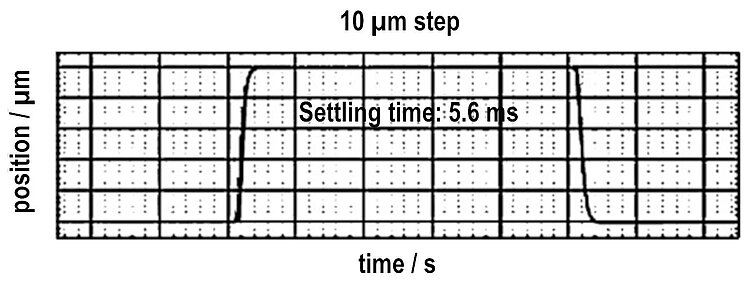

- Typ. step-and-settle about 6 ms
- Travel range 100 µm
- Highest linearity, stability, and control dynamics due to direct-measuring capacitive sensors
- Resolution 0.3 nm
- Zero-play, high-precision flexure guide system for better focus stability
Application fields
- Super-resolution microscopy
- Light disc microscopy
- Confocal microscopy
- 3-D imaging
- Screening
- Interferometry
- Measuring technology
- Autofocus systems
- Biotechnology
- Semiconductor tests
Outstanding lifetime thanks to PICMA® piezo actuators
The patented PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
Subnanometer resolution with capacitive sensors
Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.
High guiding accuracy due to zero-play flexure guides
Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They are 100 % vacuum compatible and work in a wide temperature range.
Automatic configuration and fast component exchange
Mechanics and controllers can be combined as required and exchanged quickly. All servo and linearization parameters are stored in the ID chip of the D-sub connector of the mechanics. The autocalibration function of the digital controllers uses this data each time the controller is switched on.
Maximum accuracy due to direct position measuring
Motion is measured directly at the motion platform without any influence from the drive or guide elements. This allows optimum repeatability, outstanding stability, and stiff, fast-responding control.
Specifications
Specifications
P-726.1CD | Unit | Tolerance | |
---|---|---|---|
Active axes | Z | ||
Motion and positioning | |||
Integrated sensor | Capacitive / direct measuring | ||
Travel range, closed loop | 100 | µm | |
Resolution, closed loop | 0.4 | nm | typ. |
Resolution, open loop | 0.3 | nm | typ. |
Linearity error, closed loop | 0.02 | % | typ. |
Repeatability | ±3 | nm | typ. |
Crosstalk in X, Y | 50 | nm | typ. |
Mechanical properties | |||
Stiffness in motion direction | 3.4 | N/µm | ±20 % |
Resonant frequency, no load | 1120 | Hz | ±20 % |
Resonant frequency, under load, 210 g | 560 | Hz | ±20 % |
Resonant frequency, under load, 310 g | 480 | Hz | ±20 % |
Push/pull force capacity in motion direction | 100 / 50 | N | max. |
Load capacity | 20 | N | max. |
Drive properties | |||
Piezo ceramic type | PICMA® P-885 | ||
Electrical capacitance | 6 | µF | ±20 % |
Miscellaneous | |||
Operating temperature range | -20 to 80 | °C | |
Material | Aluminum, steel | ||

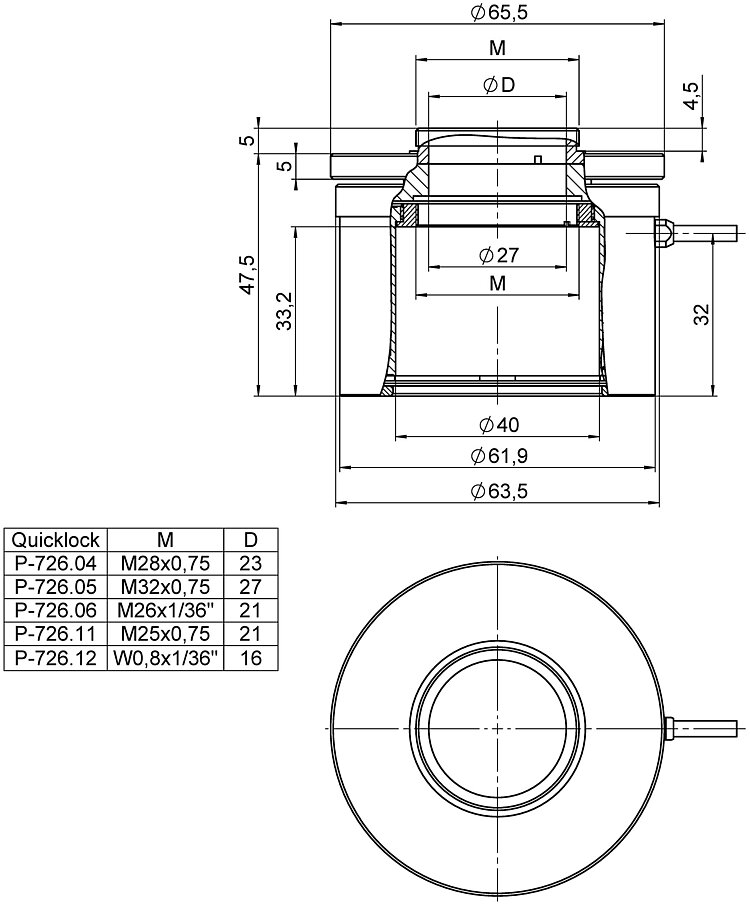

Objective thread | M32 | ||
Mass | 575 | g | ±5 % |
Cable length | 1.5 | m | ±10 mm |
Sensor/voltage connection | D-sub 7W2 (m) | ||
Recommended electronics | E-505, E-621, E-625, E-665, E-709, E-754 |
Downloads
Product Note
Product Change Notification Piezo Actuator Driven Products
Datasheet
Documentation
User Manual P726T0002
P-726.1CD PIFOC® High-Load Objective Scanner
Installation Instructions P726T0001

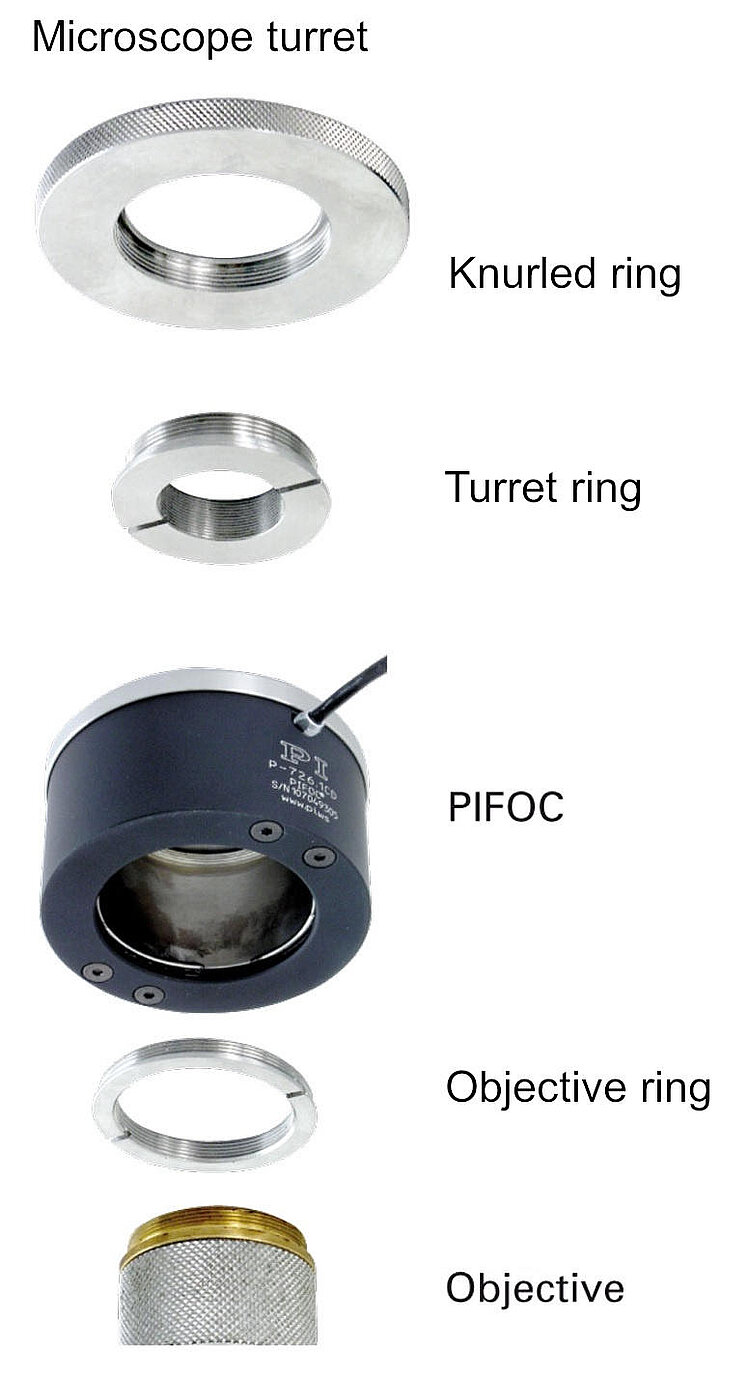

P-726.xx QuickLock Thread Adapters for P-726 PIFOC
