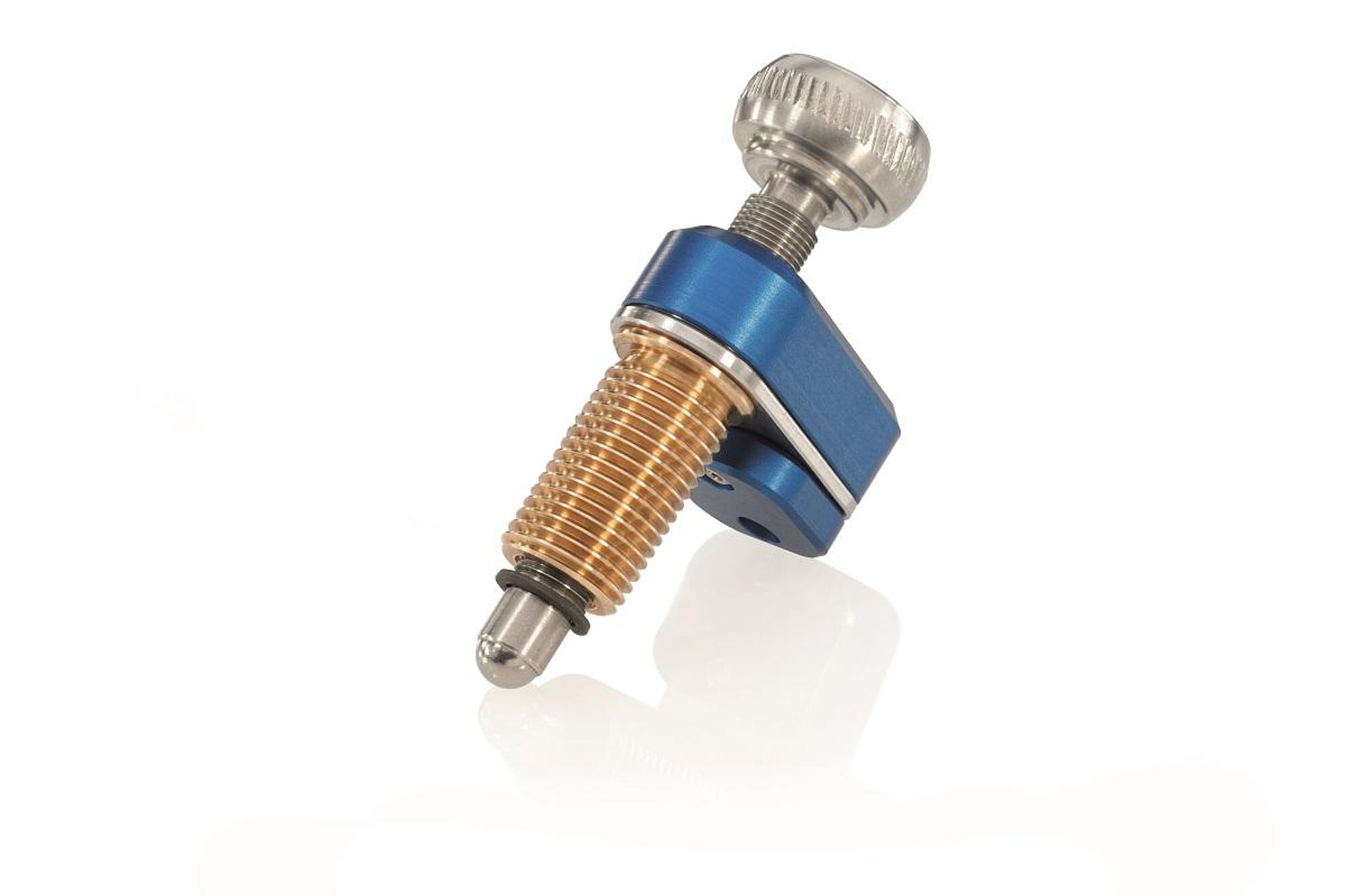

N-470 PiezoMike Linear Actuator

Minimum Dimensions, High Forces, Stable Positioning

  • Holding force 100 N, feed force 22 N
  • Step size 20 nm
  • Travel range 7 mm to 13 mm
  • Compact design
  • Lifetime >1,000,000,000 steps
  • Self-locking, no heat generation at rest
N-470 PiezoMike Linear Actuator
Product Description Specifications Downloads Quote / Order

Linear actuator with piezo motors

Linear screw-type actuator with piezo inertia drive for high-resolution and stable positioning.

Piezo motors

Compact, inexpensive inertia drive principle (stick-slip). The drive is self-locking at rest, requires no current, and does not generate any heat. It holds the position with maximum force.

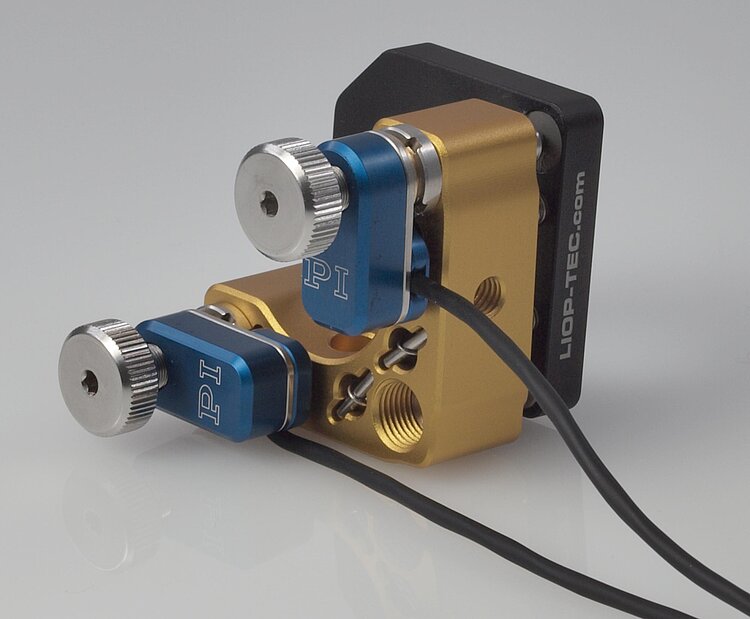

Alignment of mechanical and optomechanical components

Stable adjustment in optical paths. Long-term positioning: High stability at target position, reliable startup even after longer downtimes. High holding force and resolution by combining piezo actuators with mechanical thread translation.

Specifications

Datasheet

Datasheet N-470

Version / Date
2023-07-13
pdf - 848 KB
Version / Date
2023-07-13
pdf - 851 KB

Downloads

Product Note

Product Note

Product Change Notification N-310.XX-N-47X.XX

Version / Date
2023-01-23
pdf - 86 KB
Product Note

Product Change Notification N-47x.xxx

Version / Date
2020-05-20
pdf - 225 KB
English

Datasheet

Datasheet

Datasheet N-470

Version / Date
2023-07-13
pdf - 848 KB
Version / Date
2023-07-13
pdf - 851 KB

Documentation

Documentation

Short Instructions MP171EK

PiezoMike Linear Actuators: N-45x / N-47x / N-48x

Version / Date
1.1.0 03/2020
pdf - 1 MB
Version / Date
1.1.0 03/2020
pdf - 1 MB
Documentation

User Manual MP125

N-470 PiezoMike Linear Actuator

Version / Date
2.1.0 2023-09-29
pdf - 2 MB
Version / Date
2.1.0 2023-09-29
pdf - 2 MB

3D Models

3D Models

N-470 3-D model

zip - 2 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

N-470.110Y

PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; M10×1 thread; 22 N feed force; 2.4 mm/min maximum velocity; 2 m cable length; turned cable exit

N-470.120

PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2.4 mm/min maximum velocity; 2 m cable length

N-470.120Y

PiezoMike linear actuator; piezoelectric inertia drive; 7 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2.4 mm/min maximum velocity; 2 m cable length; turned cable exit

N-470.210Y

PiezoMike linear actuator; piezoelectric inertia drive; 13 mm travel range; M10×1 thread; 22 N feed force; 2.4 mm/min maximum velocity; 2 m cable length; turned cable exit

N-470.220

PiezoMike linear actuator; piezoelectric inertia drive; 13 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2.4 mm/min maximum velocity; 2 m cable length

N-470.220Y

PiezoMike linear actuator; piezoelectric inertia drive; 13 mm travel range; 9.5 mm (0.375") clamping shank; 22 N feed force; 2.4 mm/min maximum velocity; 2 m cable length; turned cable exit
