Piezo Transducers, Actuators, and Motor Drive Solutions for Medical Engineering

Back to PI Website, www.pi-usa.us

Medical engineering and life-science disciplines have multi-faceted requirements for motion and positioning equipment: the spectrum spans from ultrasonic transducers to simple low-energy drive components to high-precision positioning systems and ultra-fast actuators for valve and pumping applications.

Piezoceramic transducers and motor drives meet these needs and have a long track record of reliability and ruggedness in industries such as semiconductor manufacturing and optical technologies. In fact, PICMA® piezo actuators were selected for the Mars Mission after passing 100 billion cycles of life testing with zero failures.

A few applications for piezo transducers, actuators and motors are:

  • Zoom actuators for endoscopes, micropumps, nanodispenser, pipettors, nebulizers, bubble detectors and flow meters, cutting tools in endoscopic piezosurgery
Animation of the solid-state effects inside piezoceramic materials when the electric field is changed (Image: PI)
Animation of the solid-state effects inside piezoceramic materials when the electric field is changed (Image: PI)

High Performance Piezo-Driven Diaphragm Micropumps

Micro-diaphragm pumps require miniaturized drive mechanisms which can provide a continuous flow and variable flow rates. The small volumes per pumping cycle mean high drive frequencies in the 10’s of kilo Hertz range to achieve high flow rates.

The continuous, slow motion of infusion pumps can also be generated with piezo drives. (Image: PI)

Disk-shaped piezo transducers can be integrated with the diaphragm. For larger forces or extensions, a piezo linear actuator can be coupled directly with a diaphragm or a piston.

The continuous, slow motion of infusion pumps can also be generated with piezo drives.

(left) Piezoceramic disks can be attached to the membrane of a micropump and thus move it with high frequency. (Image: PI) (right) Piezo-transducer driven micro-diaphragm pump for laboratory automation (Image: thinXXS Microtechnology AG)
(left) Piezoceramic disks can be attached to the membrane of a micropump and thus move it with high frequency. (Image: PI)
(right) Piezo-transducer driven micro-diaphragm pump for laboratory automation (Image: thinXXS Microtechnology AG)

Micro-Dosing Valves with Piezo Flexure Drives

P-604 low-cost piezo flexure OEM actuator (Image: PI)
P-604 low-cost piezo flexure OEM actuator (Image: PI)

Micro-dosing valves for nanoliter, or even picoliter, droplets rely on very fast actuation. Piezo-actuators are used in several types of drives: they can operate valves directly, or work against strong springs or a flexible tubing for to displace liquid volumes. Generally, the faster a valve can be opened and closed, the smaller the volume that can be controlled. Frequencies in the kilohertz range are desirable and piezo actuators provide faster response than electromagnetic drives, such as solenoids or voice coils. The high kinetic energy produced by piezo mechanisms can generate ultra-small droplets without subsequent dripping, nebulization or satellite formation. For drop-on-demand methods similar to ink jet technology, piezo tubes that contract radially when a voltage is applied are available. Valves requiring larger strokes can be implemented by piezo flexure actuators with integrated motion amplifier.

Principle design of a high-speed precision dosing valve for micro-liter to picoliter applications. Piezo mechanics are stiffer and can move faster than solenoids. Piezo flexure amplified actuators provide motion ranges of several 100µm and extremely fast mechanical response to drive signal changes in the order of milliseconds and below. The high speed combined with the virtually unlimited position resolution in the nanometer range provides advantages in open/close speed of valves and also in the dosing precision. (Image: PI)
Principle design of a high-speed precision dosing valve for micro-liter to picoliter applications. Piezo mechanics are stiffer and can move faster than solenoids. Piezo flexure amplified actuators provide motion ranges of several 100µm and extremely fast mechanical response to drive signal changes in the order of milliseconds and below. The high speed combined with the virtually unlimited position resolution in the nanometer range provides advantages in open/close speed of valves and also in the dosing precision. (Image: PI)

Another principle is the direct displacement method used in PipeJet™ dispensers, based on an elastic polymer fluid line with a thin internal diameter driven by high-force PICMA® piezo stack actuators. Since the tube and piezo drive are separated, maintenance is easy and any parts contaminated by fluid can be replaced quickly and cost-efficiently.

PipeJet micro-dosing pump. This system does not require a valve and is based on a PICMA® piezo-linear-direct drive actuator, displacing the liquid in a flexible tube. (Image: Biofluidix)
PipeJet micro-dosing pump. This system does not require a valve and is based on a PICMA® piezo-linear-direct drive actuator, displacing the liquid in a flexible tube. (Image: Biofluidix)

Pumps for Outpatient Therapy

Outpatient therapy often relies on mobile drug pumps for various applications, such as pain therapy, oncology, parenteral nutrition as well as metabolic disorders. Mobility not only improves the quality of life, it also reduces therapy costs as the patients do not require treatment at the hospital. Conventional mobile drug pumps have limitations when it comes to flexibility, size, weight, and reliability. Recent advances in drive systems, based on piezo ceramic motors, can help overcome these limitations and open up new opportunities for medical device manufacturers and patients as well.

The concept of compact, mobile drug delivery, often involves balloon pumps. But they show significant inconsistencies in the medication delivery rate and lack the ability to document the exact injection amounts. Since “mobile” patients are usually not in the hospital, there is no trained personal to precisely monitor the course of therapy. The physician needs accurate information for a successful treatment. Therefore, a pump system is required which also allows for exact traceability of medication quantities vs time outside the hospital. For such cases, peristaltic pumps are currently the best solution.

However, due to their considerable weight and size, these pumps severely restrict the patient’s mobility. They do, however, allow for a precise dosage and programmable, timing and volume flows. The peristaltic pumps are suitable for various medications, as they deliver a continuous flow (basal rate), but even special injections (bolus rates) are also easy to dose and can be scheduled in any manner. In addition, all procedures can be documented to evaluate specified drug quantities and the course of therapy and to submit relevant data to insurance providers.

A compact piezoelectric ultrasonic rotary motor for variable drug delivery. The motor consists of a piezoelectric ring actuator excited with a travelling wave. Thin aluminum oxide rings (grey) on top and bottom of the piezo ring absorb the oscillations. With the help of the three coupling elements (pink) used in the rotor, the absorbed oscillations are transmitted to the pre-loaded rotor (green) and converted to a rotary motion. (Image: PI)
A compact piezoelectric ultrasonic rotary motor for variable drug delivery. The motor consists of a piezoelectric ring actuator excited with a travelling wave. Thin aluminum oxide rings (grey) on top and bottom of the piezo ring absorb the oscillations. With the help of the three coupling elements (pink) used in the rotor, the absorbed oscillations are transmitted to the pre-loaded rotor (green) and converted to a rotary motion. (Image: PI)
Designs with the piezo actuator mounted radially are also feasible. Inside the large aperture of this ring additional components can be arranged. Drug pumps built in such a manner are particularly small, light and silent. They offer a high degree of flexibility with regard to various therapies and dosages. (Image: PI)
Designs with the piezo actuator mounted radially are also feasible. Inside the large aperture of this ring additional components can be arranged. Drug pumps built in such a manner are particularly small, light and silent. They offer a high degree of flexibility with regard to various therapies and dosages. (Image: PI)

Mobility and Documentation

Except for mobility, peristaltic pumps combine all desired requirements – however, the motors employed in these pumps leave room for improvement. Small electric motors with gear-box torque multipliers can generate the necessary torque required for pumping, but they are slow and their mechanical micro-gears are prone to backlash and wear, requiring maintenance and lacking reliability and cost efficiency.

If a gearless electric motor is used, a larger drive is required to provide the torque, but the self-locking feature of the gear box is lost and electric current is required to retain a stable position when at rest, which can impact battery life.

Operating Principles of Different Types of Piezo Motor Drives

Drive Principle of a Mini-Rod Inertia Piezo Motor>
Drive Principle of a Mini-Rod Inertia Piezo Motor>

Drive Principle of an Ultrasonic Piezo Ceramic Motor>
Drive Principle of an Ultrasonic Piezo Ceramic Motor>

Piezo-based ultrasonic direct drives can open up new opportunities here. They are quiet, very compact, low-wear, and self-locking, maintaining their position when powered off and even if they are dropped, hit or shaken. It is easy to understand how these compact piezo drives work: oscillations with ultrasonic frequencies of a piezoceramic plate are transferred to a moving runner in a linear or rotary motion. The core piece of the drive is a monolithic piezo ceramic (stator), with two electrodes. Either the left or right electrode is electrically excited, in a range of 100kHz or above, determining the direction of motion. Each oscillation moves a coupling element attached to the piezo ceramic by a few nanometers. In contact with the runner, the net result of the micro impulses is high speed motion with very high precision.

Various Designs are Feasible

The drive electronics can be integrated as a chip and requires very little installation space. In addition, the solution is extremely low-wear and reliable, as there are few mechanical components, such as gears. A very wide speed spectrum allows for a large spread of dosages. Depending on the design, dosages can be made from a few degrees up to several revolutions per second, or, in the case of linear drives, from <1mm/sec to several 100mm/sec.

Miniature Drives / Pipetting with Uniform Force

As liquid volumes fall and micro well counts go up, miniaturization of the drives is required along with higher precision for dosing smaller volumes.

Piezo linear motors can be designed incredibly small. The inertia motor shown on the left provides provide nanometer precision and is ideal for integration into miniaturized drives and instrumentation. A miniature actuator with piezo motor is shown on the right. (Image: PI)
Piezo linear motors can be designed incredibly small. The inertia motor shown on the left provides provide nanometer precision and is ideal for integration into miniaturized drives and instrumentation. A miniature actuator with piezo motor is shown on the right. (Image: PI)

Piezo linear motors can be manufactured small enough to meet these requirements, providing uniform speed and force along with positioning accuracy in the micrometer to nanometer range. The significant reduction of moving components compared to conventional motor/screw drives reduces the size and increases the reliability.

A compact piezo motor drives the pipetting mechanism. The low profile allows for stacking of multiple units. Miniaturization higher dosing precision is advantageous as liquid volumes fall and micro well counts go up. (Image: PI)
A compact piezo motor drives the pipetting mechanism. The low profile allows for stacking of multiple units. Miniaturization higher dosing precision is advantageous as liquid volumes fall and micro well counts go up. (Image: PI)

Atomizers / Aerosols Generation

Atomizers can deliver medication highly efficiently to the respiratory tract. The homogeneity of the aerosol is critical and piezo-transducer driven membranes oscillating at high-frequency in the ultrasonic range can produces droplets of a predefined size.

An annular piezo disk excites a perforated membrane with oscillations up to 100 kilohertz. Medication is thus quickly and efficiently atomized. (Image: PI)
An annular piezo disk excites a perforated membrane with oscillations up to 100 kilohertz. Medication is thus quickly and efficiently atomized. (Image: PI)
Piezo transducer discs are available with flexible PCB to facilitate integration in volume production. (Image: PI)
Piezo transducer discs are available with flexible PCB to facilitate integration in volume production. (Image: PI)

Bubble Detection and Flow Measurement

Ultrasonic piezo transducers can be used to detect bubbles or impurities in dialysis or blood transfusion applications. The direct and inverse piezo effect allows transducers to work as both sensors and actuators (ultrasound detectors and transmitters). There is no direct contact with the fluids and no need for maintenance. The piezo transducers can both measure the flow velocity and detect bubbles.

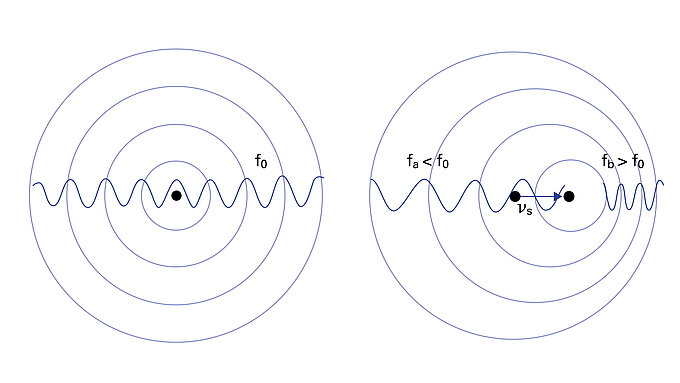

The piezo transducer element works both as an ultra-sound generator and detector. The measurement is based on the Doppler Effect: oscillations in the 100kHz range are reflected by the medium. Signal processing electronics can tell frequency offsets and changes in the reflection pattern and reliably measure flow rate and detect air bubbles. (Image: PI)
Air In-Line Sensor: The piezo transducer element works both as an ultra-sound generator and detector. The measurement is based on the Doppler Effect: oscillations in the 100kHz range are reflected by the medium. Signal processing electronics can tell frequency offsets and changes in the reflection pattern and reliably measure flow rate and detect air bubbles. (Image: PI)

Piezo Drives for Endoscopy and Ophthalmology

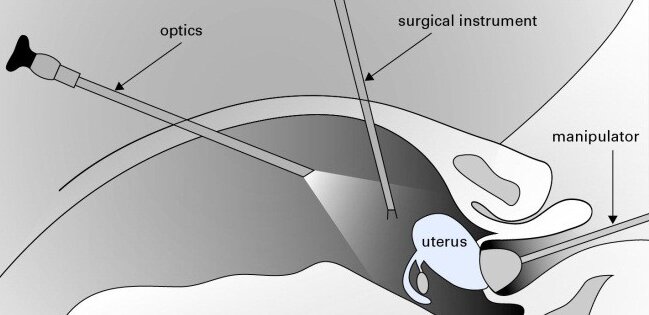

Piezo drives have many additional fields, for example, laser beam control in cosmetic applications and ophthalmology, as focusing drives in endoscopy or precision shutters for radiation therapy.

Animation showing a piezo drive in an ophthalmology application >
Animation showing a piezo drive in an ophthalmology application >
More information is here.

Piezo ceramic motors do neither create nor are they susceptible to strong magnetic fields. Multi-leaf collimators are used in tumor treatment to reduce side effects of the radiation beam to healthy tissue. Piezo drives are very compact and allow tighter packaging, leading to an increased leave count and better adjustability of the contour which means higher protection for the patient.

Piezo linear motors can be tightly packaged to control the leaves in a multi-leaf collimator for radiation treatment.
Piezo linear motors can be tightly packaged to control the leaves in a multi-leaf collimator for radiation treatment.

Summary

Piezo technology (transducers, actuators, and motors) provides advanced solutions to many motion, dosing, measuring and positioning problems.  Piezo elements convert electrical energy directly into mechanical energy and vice versa. The piezo effect is based on crystalline displacements, with no friction and physical wear.  Piezo ceramics are sterile, require no lubrication and can be baked at high temperatures.  Piezo products are inherently vacuum compatible and non-magnetic – all ideal prerequisites for bio-medical applications.

Variety of piezo ceramic transducer disks, rings benders, and tubes. (Image: PI)
Variety of piezo ceramic transducer disks, rings benders, and tubes. (Image: PI)



Insights into piezo transducer manufacturing processes at the PI Ceramic factory. Watch video>
Insights into piezo transducer manufacturing processes at the PI Ceramic factory. Watch video>
