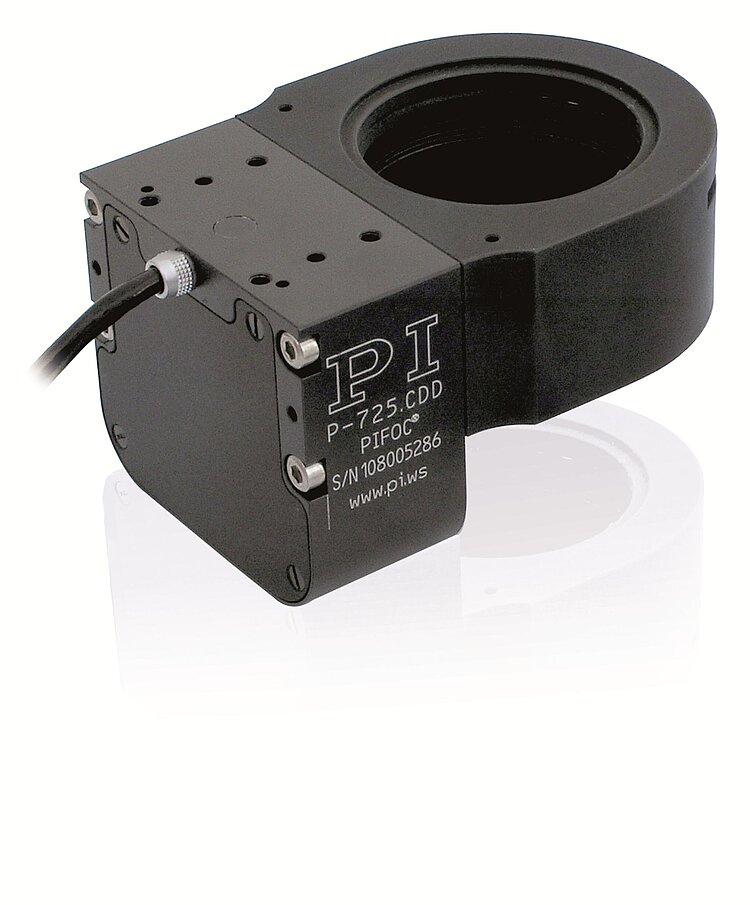

P-725.CDD PIFOC High Dynamics Piezo Scanner

Nanopositioner and Scanner for Microscope Objectives

  • Shortest settling time under 5 ms with microscope objective
  • Travel range 18 µm
  • Fine positioning of objectives with sub-nm resolution
  • Minimum objective shift due to parallel flexure guiding
  • Highest linearity due to direct measuring technology with capacitive sensors
  • Outstanding lifetime due to PICMA® piezo actuators

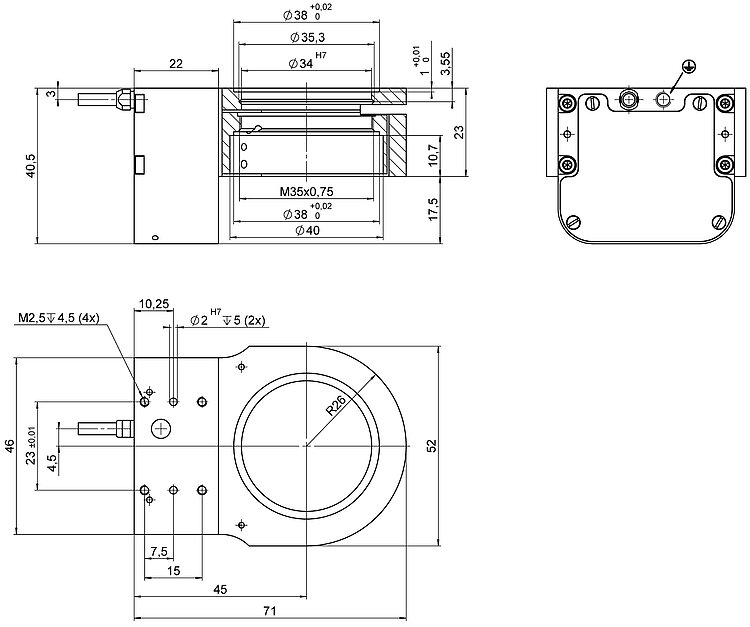

  • QuickLock adapter for easy installation
P-725.CDD PIFOC High Dynamics Piezo Scanner
Product Description Specifications Downloads Quote / Order

Application fields

  • Super-resolution microscopy
  • Light disk microscopy
  • Confocal microscopy
  • 3-D imaging
  • Screening
  • Interferometry
  • Measuring technology
  • Autofocus systems
  • Biotechnology
  • Semiconductor tests

Outstanding lifetime thanks to PICMA® piezo actuators

The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.

Subnanometer resolution with capacitive sensors

Capacitive sensors measure with subnanometer resolution without contacting. They guarantee excellent linearity of motion, long-term stability, and a bandwidth in the kHz range.

High guiding accuracy due to zero-play flexure guides

Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.

Automatic configuration and fast component exchange

Mechanics and controllers can be combined as required and exchanged quickly. All servo and linearization parameters are stored in the ID chip of the D-sub connector of the mechanics. The autocalibration function of the digital controllers uses this data each time the controller is switched on.

Maximum accuracy due to direct position measuring

Motion is measured directly at the motion platform without any influence from the drive or guide elements. This allows optimum repeatability, outstanding stability, and stiff, fast-responding control.

Specifications

Datasheet

Datasheet P-725.CDD

Version / Date
2024-03-25
pdf - 543 KB
Version / Date
2024-03-25
pdf - 546 KB
Version / Date
2018-06-14
pdf - 748 KB
Version / Date
2018-10-24
pdf - 823 KB

Downloads

Product Note

Product Note

Product Change Notification P-72x

PIFOC Portfolio

Version / Date
00.002 2021-09-28
pdf - 624 KB
English
Product Note

Product Change Notification Piezo Actuator Driven Products

Version / Date
2021-04-19
pdf - 377 KB
English

Datasheet

Datasheet

Datasheet P-725.CDD

Version / Date
2024-03-25
pdf - 543 KB
Version / Date
2024-03-25
pdf - 546 KB
Version / Date
2018-06-14
pdf - 748 KB
Version / Date
2018-10-24
pdf - 823 KB

Documentation

Documentation

Short Instructions PZ240

Piezo Positioning Systems: P-5xx / P-6xx / P-7xx

Version / Date
6.2.0 03/2024
pdf - 561 KB
Version / Date
6.2.0 03/2024
pdf - 595 KB
Documentation

User Manual P725T0010

P-725.xxx PIFOC Objective Scanners

Version / Date
2023-09-18
pdf - 2 MB
Version / Date
2023-09-18
pdf - 2 MB
Documentation

Installation Instructions P721T0002

P-721 Thread Adapters for P-721 / P-725.xxx PIFOC Objective Scanners

Version / Date
2022-04-01
pdf - 795 KB
Version / Date
2022-04-01
pdf - 804 KB

3D Models

3D Models

P-725.xDD 3-D model

zip - 574 KB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
