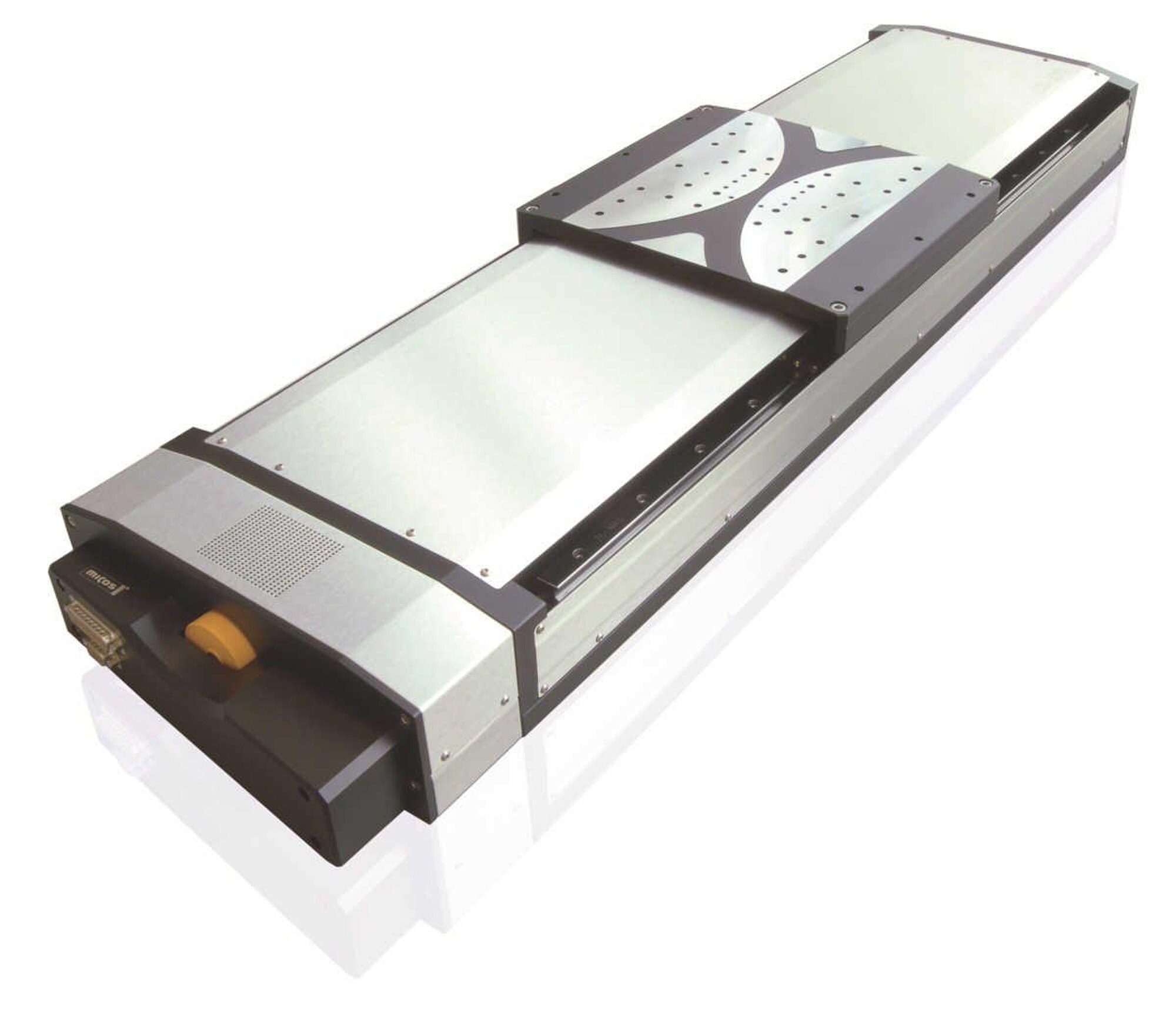

LS-270 Linear Stage for Very High Loads

Robust Design with High Stiffness

  • Travel ranges from 305 to 1016 mm (12 to 40")
  • Excellent travel accuracy
  • Max. velocity to 150 mm/s
  • Load capacity to 1500 N
  • Versions with linear measuring system
LS-270 Linear Stage for Very High Loads
Product Description Specifications Downloads Quote / Order

Reference-class linear stage

High travel accuracy and load capacity due to crossed roller guides with long lifetime. Precision ball screw with 5 mm pitch. Stress-relieved aluminum base for highest stability. Noncontact inductive limit switches.

Drive types

  • Closed-loop DC servo motor with rotary encoder on the motor shaft
  • 2-phase stepper motor for high torque even at low velocities and high resolution

Versions with direct position measurement

Integrated linear encoder, mounted between the guides. Direct position measurement of the motion platform eliminates the influence of mechanical play and hysteresis in the drivetrain on the positioning precision.

Minimum incremental motion

In conjunction with the SMC Hydra controller, versions with stepper motor and integrated linear encoder achieve repeatable minimum incremental motion in the range of the sensor resolution. The same configuration achieves constant low velocities of a few sensor increments per second.

Application fields

Precision positioning in industry and research, high duty cycles.

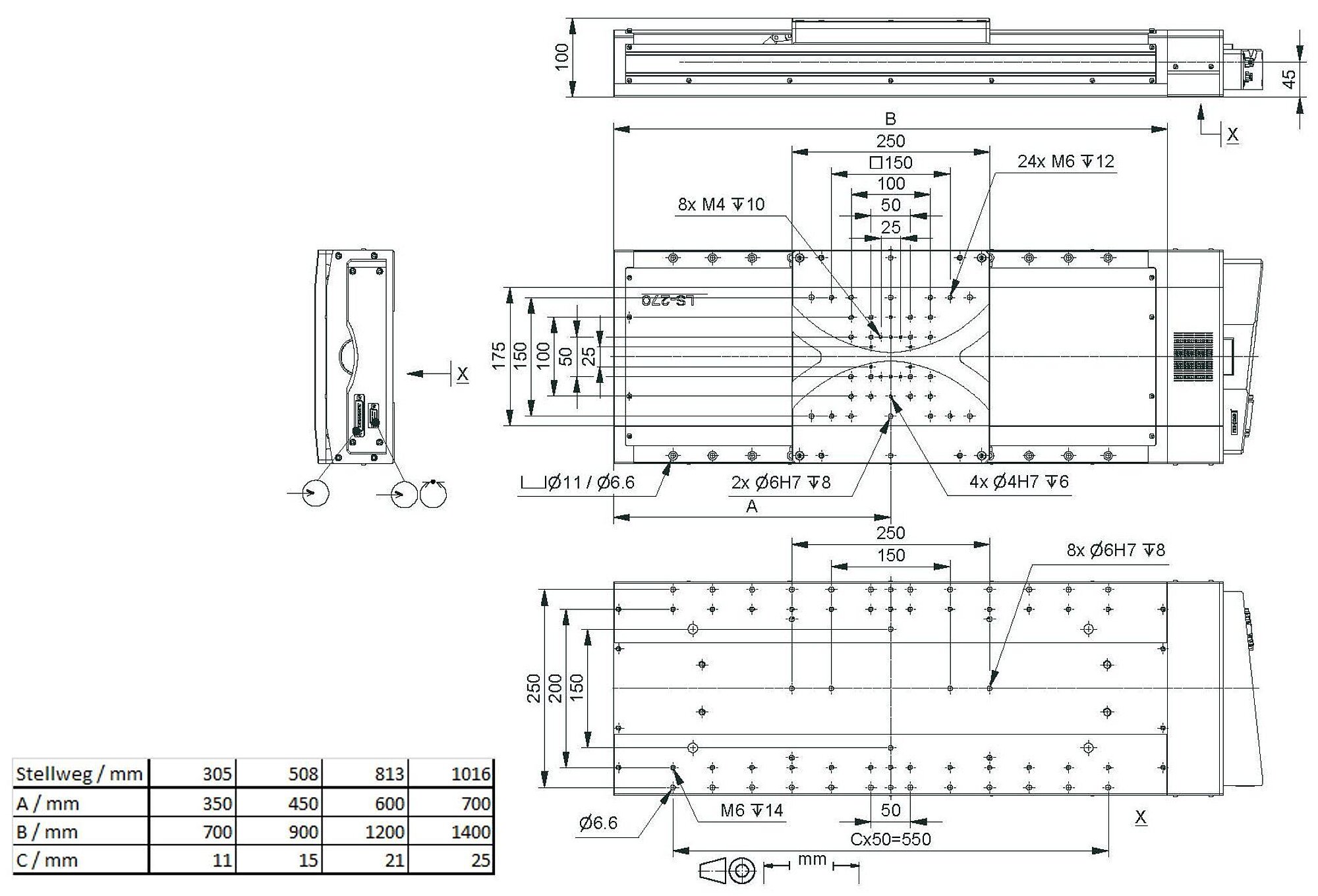

Specifications

Datasheet

Datasheet LS-270

Version / Date
2018-04-13
pdf - 626 KB
Version / Date
2018-04-13
pdf - 628 KB
Version / Date
2018-06-19
pdf - 836 KB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English

Datasheet

Datasheet

Datasheet LS-270

Version / Date
2018-04-13
pdf - 626 KB
Version / Date
2018-04-13
pdf - 628 KB
Version / Date
2018-06-19
pdf - 836 KB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
2.0.0 01/2020
pdf - 736 KB
Version / Date
2.0.0 01/2020
pdf - 749 KB
Documentation

PI miCos Motors & Encoders: DC-Brush Motors

Technical Data of DC-Brush Motors

pdf - 78 KB
English
Documentation

PI miCos Motors & Encoders: Stepper Motors

Technical Data of 2-Phase Stepper

Version / Date
---
pdf - 58 KB
English
Documentation

PI miCos Technical Data Linear and Rotary Encoders

Technical Data of Linear Encoders (LE) and Rotary Encoders (RE/AE)

Version / Date
---
pdf - 83 KB
English
Documentation

User Manual LS-270

Linear Stage

Version / Date
2017-04-20
pdf - 810 KB
Version / Date
2017-04-20
pdf - 918 KB

3-D Models

3-D Models

LS-270 3-D model

zip - 29 MB
Separate connection cable required for motor and sensor connection respectively.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.

623992514-LS011
LS-270 linear stage, 270 mm width, stepper motor, 1016 mm (40") travel range, linear encoder with sin/cos signal transmission, inductive limit switches
