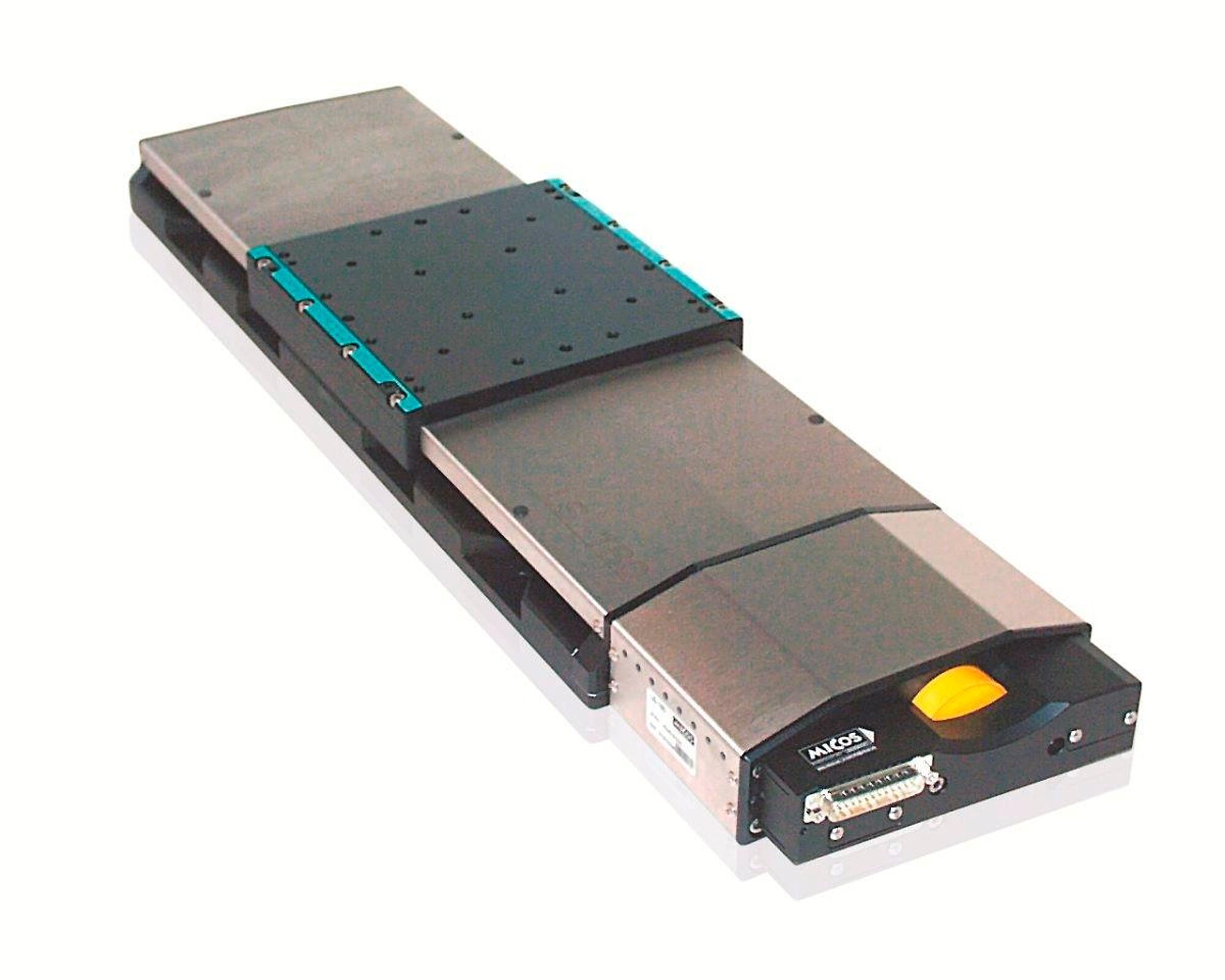

LS-180 Linear Stage for Heavy Loads

Robust Design for Industrial Use

  • Travel ranges from 155 mm to 508 mm (6" to 20")
  • Max. velocity to 150 mm/s
  • Load capacity to 1000 N
  • Optional: Linear encoder for direct position measuring
LS-180 Linear Stage for Heavy Loads
Product Description Specifications Downloads Quote / Order

Reference-class linear positioner

High travel accuracy and load capacity thanks to recirculating ball bearing guides. Precision ball screw with 5 mm pitch. Stress-relieved aluminum base for highest stability. Noncontact inductive limit switches.

Drive types

  • Closed-loop DC servo motor with rotary encoder on the motor shaft
  • 2-phase stepper motor for high torque even at low velocities and high resolution

Highly accurate position measuring with incremental linear encoder

Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement.

Recirculating ball bearings

When carefully assembled, recirculating ball bearings are distinguished by a beneficial combination of high load capacity, lifetime, maintenance-free operation, and guiding accuracy. The moving part of the stages is supported by four preloaded linear ball bearing units which run on two guide rails. Each bearing unit is made up of two independent rows of circulating ball bearings.

Minimum incremental motion

In conjunction with the SMC Hydra controller, versions with stepper motor and integrated linear encoder achieve repeatable minimum incremental motion in the range of the sensor resolution. The same configuration achieves constant low velocities of a few sensor increments per second.

Application fields

Sample inspection. Scanning. Research. Semiconductor technology.

Specifications

Datasheet

Datasheet LS-180

Version / Date
2020-09-22
pdf - 1 MB
Version / Date
2020-09-22
pdf - 1 MB
Version / Date
2019-07-31
pdf - 1 MB

Downloads

Product Note

Product Note

Product Change Notification Motor Driven Products

Version / Date
2021-04-19
pdf - 917 KB
English

Datasheet

Datasheet

Datasheet LS-180

Version / Date
2020-09-22
pdf - 1 MB
Version / Date
2020-09-22
pdf - 1 MB
Version / Date
2019-07-31
pdf - 1 MB

Documentation

Documentation

Short Instructions MP146EK

Positioners with Electric Motors: DT-xx / HPS-170 / L-xxx / LS-xxx / MTS-65 / PRS-xxx / RS-40 / UPL-120 / VT-80 / WT-xx / WT-xxx

Version / Date
2.0.0 01/2020
pdf - 736 KB
Version / Date
2.0.0 01/2020
pdf - 749 KB
Documentation

User Manual LS-180

Linear Stage

Version / Date
00.003 2017-04-20
pdf - 729 KB
Version / Date
00.003 2017-04-20
pdf - 739 KB

3-D Models

3-D Models

LS-180 3-D model

Version / Date
2016-11-22
zip - 28 MB
Separate connection cable required for motor and sensor connection respectively.

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification. All products available online can be ordered directly.
