P-1x1.0xT PICA Shear Actuators

Compact Actuators for Cryogenic and UHV Environments

  • UHV-compatible to 10-9 hPa
  • For cryogenic environments
  • Extreme reliability: >109 cycles
  • Picometer resolution
  • µs response time
P-1x1.0xT PICA Shear Actuators
Product Description Specifications Downloads Quote / Order

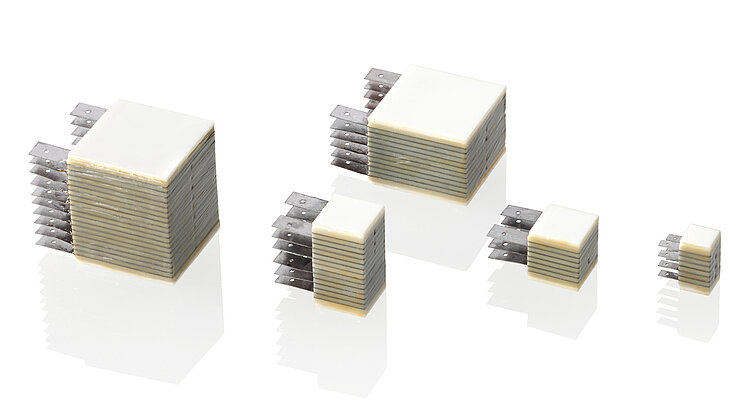

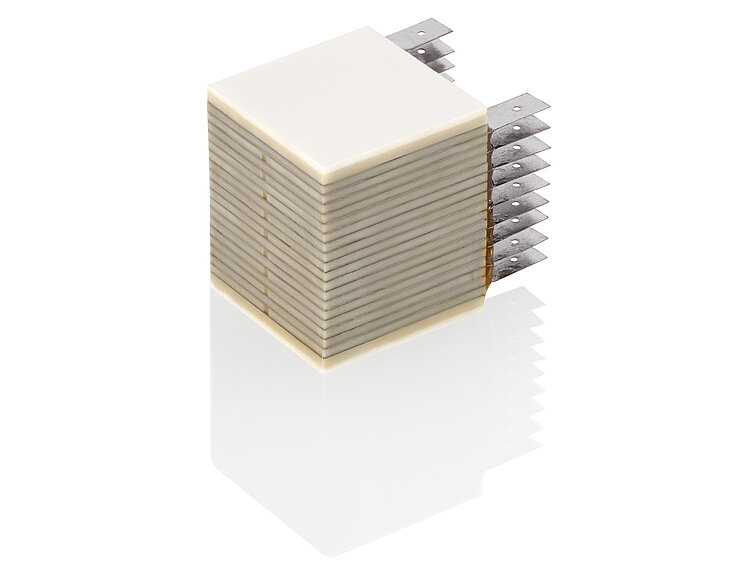

Piezo shear actuators

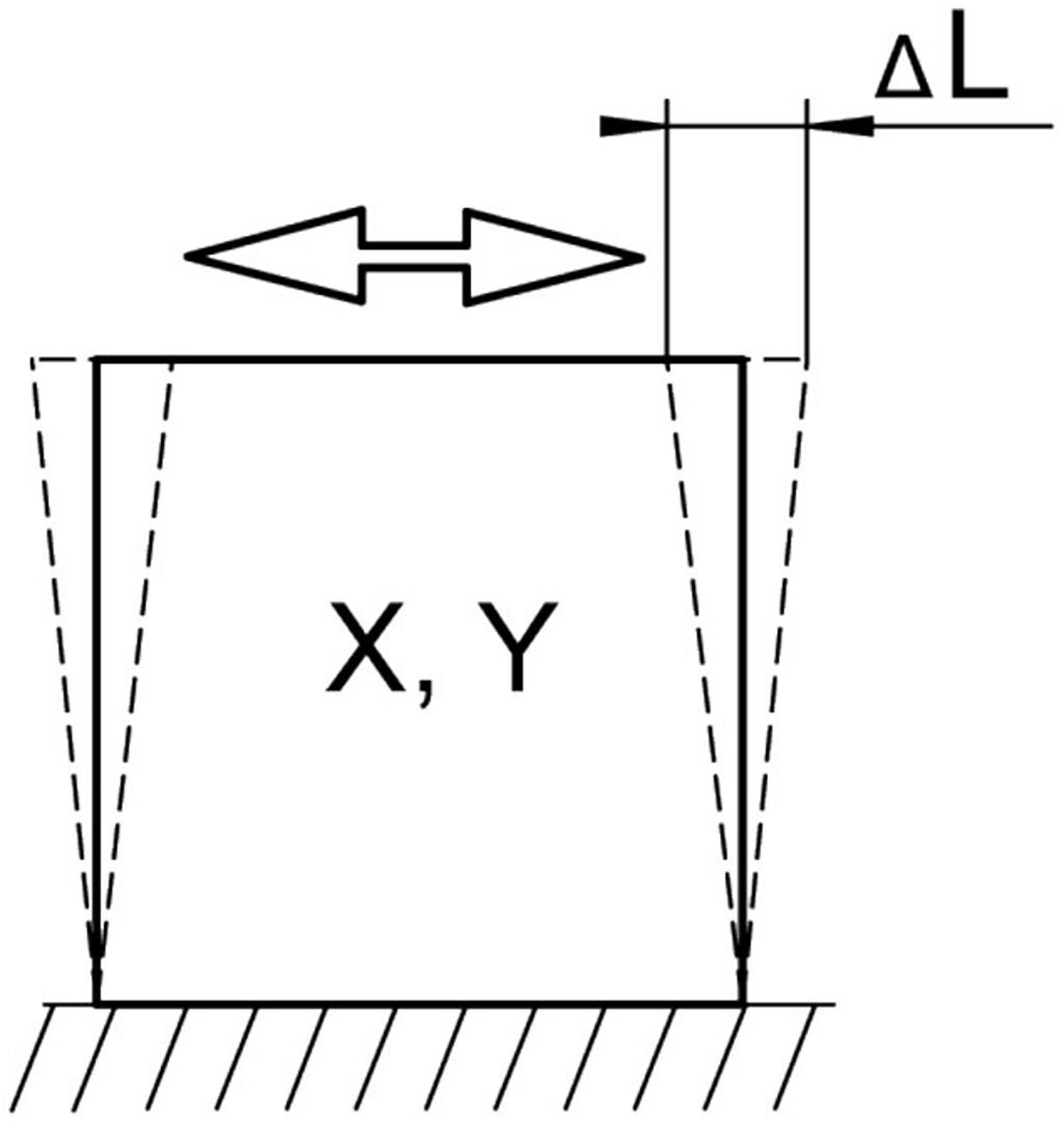

Operating voltage -250 to 250 V. Suitable for use in cryogenic and UHV environments to 10-9 hPa. Lateral displacement is based on the piezoelectric shear effect. Excellent dynamics with minimum electric power requirement.

Variants for multi-axis motion, also with inner hole.

Possible modifications

  • Piezo ceramic material
  • Nonmagnetic versions
  • Operating voltage range, displacement, layer thickness, cross-sectional dimension
  • Load capacity, force generation
  • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc.
  • Extra-tight length tolerances

Application fields

  • Industry and research
  • Low temperature / vacuum environment to 10-9 hPa
  • Scanning applications
  • Microscopy
  • Precision mechanics
  • Switching applications

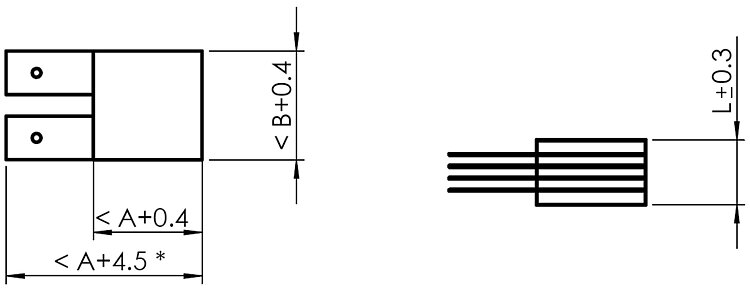

Specifications

Datasheet

Datasheet P-1x1.0xT

Version / Date
2023-12-13
pdf - 466 KB
Version / Date
2023-12-13
pdf - 470 KB
Version / Date
2018-05-14
pdf - 745 KB

Downloads

Datasheet

Datasheet

Datasheet P-1x1.0xT

Version / Date
2023-12-13
pdf - 466 KB
Version / Date
2023-12-13
pdf - 470 KB
Version / Date
2018-05-14
pdf - 745 KB

Documentation

Documentation

Short Instructions PZ257EK

PICA Piezo Actuators up to 1000 V: P-0xx, P-1xx, P-405, PICA Stack, PICA Power, PICA Thru, PICA Shear, Picoactuator®

Version / Date
3.0.0 04/2021
pdf - 812 KB
Version / Date
3.0.0 04/2021
pdf - 826 KB
Documentation

User Manual PZ252

PICA Shear Piezo Actuators: P-111, P-112, P-121, P-122, P-123, P-141, P-142, P-143, P-151, P-152, P-153, PICA Shear Customized Products

Version / Date
1.3.0 2018-12-19
pdf - 2 MB
Version / Date
1.3.0 2018-12-19
pdf - 2 MB

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-111.01T

PICA Shear piezo actuator; PICA Shear piezo actuator drive; 1 µm travel range (open loop); 3 mm × 3 mm surface; 2.2 mm length; vacuum-compatible to 10⁻⁹ hPa; operating temperature up to -269 °C; solderable contacts

P-111.03T

PICA Shear piezo actuator; PICA Shear piezo actuator drive; 3 µm travel range (open loop); 3 mm × 3 mm surface; 4.4 mm length; vacuum-compatible to 10⁻⁹ hPa; operating temperature up to -269 °C; solderable contacts

P-121.01T

PICA Shear piezo actuator; PICA Shear piezo actuator drive; 1 µm travel range (open loop); 5 mm × 5 mm surface; 2.2 mm length; vacuum-compatible to 10⁻⁹ hPa; operating temperature up to -269 °C; solderable contacts

P-121.03T

PICA Shear piezo actuator; PICA Shear piezo actuator drive; 3 µm travel range (open loop); 5 mm × 5 mm surface; 4.4 mm length; vacuum-compatible to 10⁻⁹ hPa; operating temperature up to -269 °C; solderable contacts
